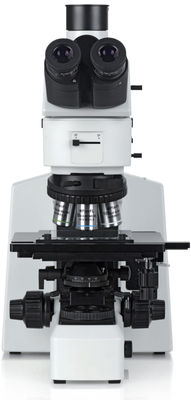

Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head

Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head
Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head

Large Image :  Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Metallurgical Microscope
Optical System: Infinity Chromatic Aberration Correction Optical System Eyepiece: Customized
Head: Hinged Trinocular Head Objective: Semi-apochromatic Metallographic Objective
Micrometer: High-precision Micrometer, Scale Value 0.01mm Stage: Two Sizes Available
High Light:

Hinged 400X Optical Metallurgical Microscope

,

ODM Phidix Optical Metallurgical Microscope

,

0.01mm 400x microscope objective



400X Polarizing Trinocular Portable Metallurgical Microscope For Element Analysis



M10103 400X Polarizing Trinocular Portable Metallurgical Microscope For Element Analysis Metallography mainly refers to the branch of materials science that uses optical (metallographic) microscopes and stereo microscopes to analyze, study and characterize the microstructure, low-power structure, and fractured structure of materials. It includes both the imaging and qualitative analysis of the microstructure of materials. Quantitative characterization also includes necessary sample preparation and sampling methods. It mainly reflects and characterizes the phase and structure of the material, crystal grains (including possible sub-crystals), the number, morphology, size, distribution, orientation, and spatial arrangement of non-metallic inclusions and even certain crystal defects (such as dislocations).



Features:



- Adopt the world's best infinity double color correction and contrast enhancement (ICCS) optical system to provide users with the sharpest images.

- Using 5 kinds of upper parts, 3 kinds of lower parts and two column combinations, it can be combined arbitrarily and flexibly according to your material detection requirements and economic costs, which can realize the analysis of transparent materials, opaque materials and fluorescent materials. At the same time, it has a strong upgrade space to ensure your future testing requirements.

- The industry's largest model height can reach 380 mm, providing you with extraordinary operating space.

- The flexibility close to the user, no professional personnel are required to upgrade the parts of the equipment, and the user can complete the operation by himself.



Items Specification M10103A M10103B
Optical system Infinity color corrected optical system
Observation Bright field / Dark field / Polarizing / DIC
Eyepiece High eyepoint wide field plan eyepiece PL10X25mm, diopter adjustable
High eyepoint wide field plan eyepiece PL10X25mm, with reticle, diopter adjustable
Viewing head 30°inclined, erect image, infinity gemel trinocular head with interpupillary distance 50-76mm, split ratio 100:0 or 0:100
30° inclined, inverted image, infinity gemel trinocular head, interpupillary distance: 50mm~76mm; splitting ratio R:T=100:0 or 20:80 or 0:100
5-35° adjustable,erect image, infinity gemel trinocular head, interpupillary distance: 50mm~76mm; splitting ratio R:T=100:0 or 0:100
Objective BD semi-apochroomatic metallurgical objective 5X/0.15, WD=13.5mm
BD semi-apochroomatic metallurgical objective 10X/0.30, WD=9mm
BD semi-apochroomatic metallurgical objective 20X/0.50, WD=2.5mm
BD semi-apochroomatic metallurgical objective 50X/0.80, WD=1.0mm
BD semi-apochroomatic metallurgical objective 100X/0.90, WD=1.0mm
BD semi-apochroomatic metallurgical objective 20X/0.40, LWD=8.5mm
Bright field semi-apochroomatic metallurgical objective 5X/0.15, WD=19.5mm
Bright field semi-apochroomatic metallurgical objective 10X/0.30, WD=10.9mm
Bright field semi-apochroomatic metallurgical objective 20X/0.50, WD=3.20mm
Bright field semi-apochroomatic metallurgical objective 50X/0.80, WD=1.20mm
Bright field semi-apochroomatic metallurgical objective 100X/0.90, WD=1.0mm
semi-apochroomatic objective with correction ring 50X/0.70, WD=2.3~2.9mm
DIC attachment apply for BD objective
Nosepiece BD sextuple nosepiece(with DIC slot)
BD quintuple nosepiece(with DIC slot)
Bright field sextuple nosepiece(with DIC slot)
Bright field septuple nosepiece(with DIC slot)
Frame Reflected/Transmitted body, low-position coaxial coarse and fine adjustment, coarse adjustment distance: 25mm; fine precision: 0.001mm. With coarse adjustment stop and tightness adjustment. Built-in 100-240V wide voltage transformer, double-way power output. intensity adjustable by digital set and reset; switch for reflection and transmission, built-in transmitted filters LBD/ND6/ND25)
Reflected body, low-position coaxial coarse and fine adjustment, coarse adjustment distance: 25mm; fine precision: 0.001mm. With coarse adjustment stop and tightness adjustment. Built-in 100-240V wide voltage transformer. Intensity adjustable by digital set and reset.
Reflected illuminator BD reflected illuminator with iris field diaphragm and aperture diaphragm, central adjustable. With filter slot and polarizing slot. With switch for bright and dark field
Filter Interference filter, natural, for reflected light
Interference filter, blue≤480nm, for reflected light
Interference filter, green: 520nm-570nm, for reflected light
Interference filter, red: 630nm-750nm, for reflected light
Lamp house 12V100W halogen lamp hose, center pre-set.
12V/100W halogen bulb
Stage 4 inch three layers mechanical stage with glass plate(for RT model) / metal plate(for R model), moving range: 102mm(Y)*105mm(X)
Rotary working table Apply to 2"/3"/4" wafer
Condenser Swing-out type achromatic condenser (N.A.0.9)
Polarizer Fixed polarizer
Analyzer 360° ratable analyzer
Fixed analyzer
Focusing C-mount 1X focusing C-mount
0.35X focusing C-mount
0.5X focusing C-mount
0.65X focusing C-mount
Stage Micrometer High precision stage micrometer (0.01mm)
Allen Key Type4
Type5
Packaing Sponge + inner box + carton(For single pack)

Note: ● means standard, ○ means optional

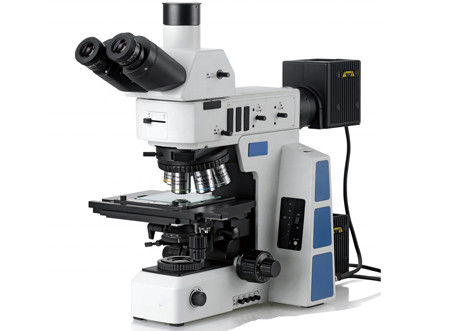

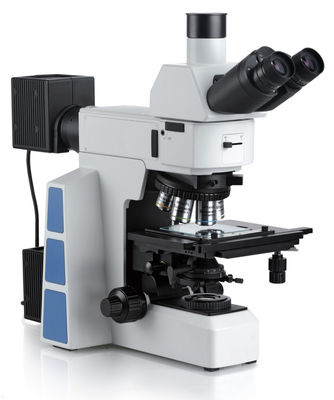

Adhering to the philosophy of continuous exploration & self-transcending, new M10103 metallurgical microscope for research with a number of pioneering design in appearance and functions, is born to provide a perfect detection solution and develop a new pattern of industrial field.



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 0



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 1



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 1



Viewing head with multi-splitting ratio

M10103 viewing head is designed of multiple options for splitting ratio. With wide beam imaging system, 26.5mm super wide field of view is available. Trinocular head with erect image, splitting ratio Binocular:Trinocular= 100:0 or 0:100. The moving direction of samples is as the same as observed. Trinocular head with inverted image, splitting ratio Binocular: Trinocular=100:0 or 20:80 or 0:100. Except for concentrating 100% light to eyepiece tube or camera tube, there is another option with 20% light to eyepiece tube and 80% to camera tube, so that eyepiece observation and image output can be available at the same time.



Polarization system

The polarizer and analyzer in polarization system contribute to eliminate the stray light in semiconductor and PCB detection, image with clear detail is achievable. There are fixed analyzer and rotatable analyzer for option. The sample can be observed at different polarizing angles with 360.rotatable analyzer. Besides, this polarization system can be upgraded to Nomarski differential interference contrast system after installing a new developed DIC attachment.



Nomarski differential interference contrast system

The weeny asperities on the surface which can’t be found in bright field, is able to be detected by using U-DICR attachment to create high contrast background. It is widely used for testing the conductive particle of LCD, surface scratch of precision disk.

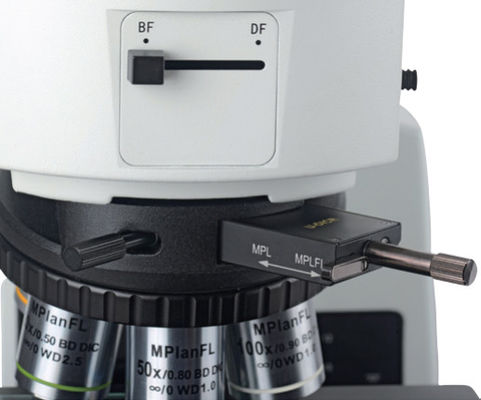

Linkage between the neutral density filter and the switch for BF & DF

The lever in front of illuminator is used to switch between bright field and dark field, and it is in tandem with a neutral density filter (ND50). When you switch from DF to BF, the built-in ND50 filter takes the role to decay the light intensity, more scientific and more comfortable.



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 3

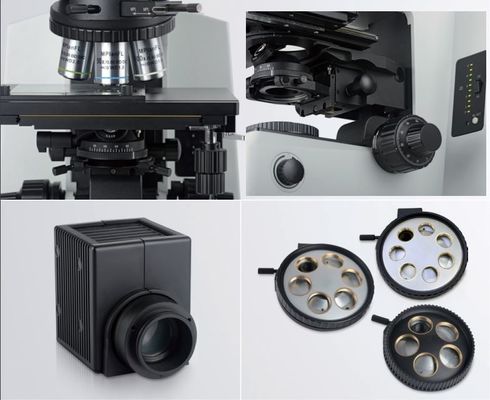

Optional nosepieces

The included angle between optical axis and rotation axis of multiple nosepiece is decreased to 15°. It is helpful to improve the accuracy of centering and focusing. Seven objectives at most can be assembled at the same time. Continuous and reasonable magnifications from low to high, is achievable.



Ergonomic design

■ The intensity can be flexibly adjusted by the dimming device which is located on the right side of frame. The voltage change all-digital displays. Adjusting intensity and coaxial focusing at the same time, improves the work efficiency.

■ Reflected or transmitted illumination can be switched by the button on the digital dimming display. Using the RE-SET button to keep the light intensity at around 8V (with a camera mark on the dimming display) ,it is an optimal voltage for photomicrography.

■ Four built-in filter holders with three standard filters, one empty holder for optional filter. All the filters can be moved out the optical path by pulling out the lever.

■ Low position coaxial focusing system with tension adjustment, the coarse range is 25mm and the fine precision is 0.001mm. The height of a tiny sample, such as solder ball, can be measured.



Stage with adjustment on the right hand

4 inches double-layer mechanical stage, it’s with the lock device to limit Y axis movement. It is widely used in horizontal detection to avoid missing. Glass plate is attachable for transmitted light.



Transmitted and reflected illuminator

12V 100W long lifetime lamp-house with halogen bulb, it provides bright and uniform light. New swing-out type achromatic condenser (N.A.0.9) optimizes the performance of Kohler illumination in lower magnification and corrects the chromatic and spherical aberration.



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 4

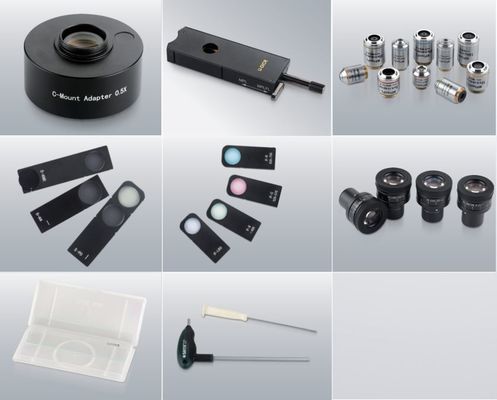

Professional LWD semi-apochromatic metallurgical objectives

■ BD objectives are designed for all-purpose, available for bright field/dark field/ polarizing/DIC observation. With plenty passed light, the efficiency of sample inspection is improved.

■ Strictly using high transmittance lens and advanced coating technology, it restores the natural color of samples.

■ Aluminum cover reduces the weight, prevents the pollution, and also improves the controllability of nosepiece.

■ Semi apochromatic design improves the contrast and definition of images.

■ Long working distance meets the demands of professional detection, it is widely applied in all kinds of industrial fields.

■ These objectives also can be used in fluorescence observation.

■ Professional LWD bright field objective for option.



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 5



High eye-point ultra wide field plan eyepieces

■ M10103 eyepiece breaks through 22mm conventional field of view, reaching to 25mm and 26.5mm, much smoother and wider field of view, is helpful to improve the work efficiency.

■ Locating pin on eyepiece inserts into the eyepiece tube, fixing the eyepiece for easy focusing. Bigger adjustable range of diopter from -8 to +5, meets more demands of different users.

■ Eyepiece cup can be turn up to avoid external stray light. Spectacle-wearers should turn down the cup to protect both spectacles and eyepieces.



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 6



M10103 is available for multi-observation, such as bright field, dark field (reflected light only), polarizing, DIC (reflected light only).



M10103 Optical Metallurgical Microscope Size (mm)

Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 7



M10103 Series Metallurgical Microscope General Layout Diagram



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 8



Semi Apochromatic Optical Metallurgical Microscope Objective 400x Trinocular Head 9
