Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Optical System: | Infinity Plan Achromatic Optical System | Eyepiece: | WF10X/22mm |
| Objective: | 5X, 10X, 20X, 50X, 100X | Nosepiece: | 5 Position |
| Focusing: | Coaxial Coarse And Fine Focusing System | Illumination: | 12V/30W Halogen Lamp Or LED Lamp |
| Highlight: | Phidix 100X Optical Metallurgical Microscope,Phidix WF10X Optical Metallurgical Microscope,100X WF10X/22mm optical instruments microscope |
||
Optical DIC Metallurgical Microscope Industrial Material Analysis

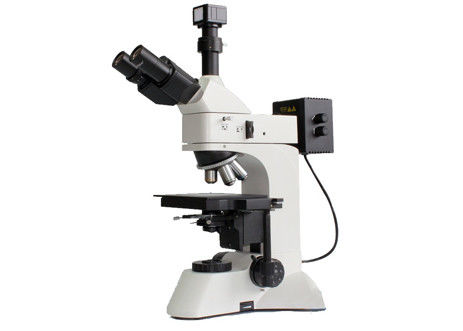

M10111 Optical DIC Metallurgical Microscope Industrial Material Analysis It is a professional differential interference contrast (DIC) Metallurgical Microscope, equipped with transmitted illuminator and reflected illuminator, infinity plan achromatic objectives with long working distance, wide-field eyepieces and polarizing kits.
Features:
- It provides clear and 3D image, beautiful sculpt, convenient control, etc.
- It is the ideal instruments in research work in electronic, metallography, mineralogy, precision engineering, etc.
| Item | Description / Value |
| Observation: | Bright field, polarizing, DIC. |
| Optical system: | Infinity Plan achromatic optical system |
| View tube: | Trinocular, 30° inclined, 360°rotating. Splitting ratio: 100: 0 or 0:100. Inter-pupillary distance 50-75mm. Diopter adjustment: ± 5 diopters |
| Magnification: | Optical magnification: 50X-1000X |
| Eyepiece: | Wide field WF 10X(Φ22mm) |
| Objective: | Infinity plan achromatic long working distance metallurgical objective: PL L5X, PL L10X, PL L20X, PL L50X, PL L100X |
| Nosepiece: | Quintuple (5-position) |
| DIC: | 10X DIC, 20X DIC |
| Stage: | Double layer mechanical stage: 210*140mm, moving range: 75mm*50mm Right hand control for X and Y direction |
| Focusing mechanism: | Coaxial coarse and fine focusing system. Tightness and height limitation for coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm Focusing stopper for protecting objective and samples. |
| Illumination: | Transmitted & reflected illumination. 12V/30W halogen lamp or LED lamp, brightness adjustable. With center adjustable field stop and aperture stop |
| Camera adapter: | 0.5X or 1X C-Mount |
| Camera: | Optional |
| Power supply: | AC100-240V, 50/60Hz |
