HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

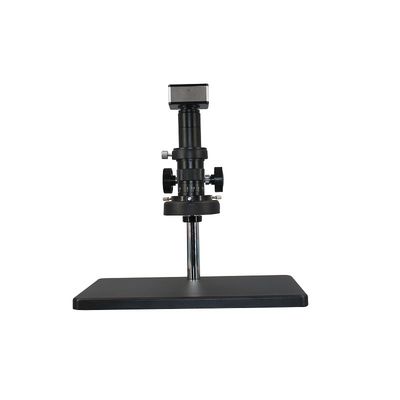

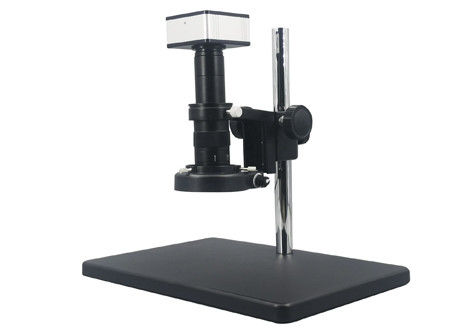

HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P

HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P
HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P

Large Image :  HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20114
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P

Description
Color: Black Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Monocular Theory: Digital Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 14X-180X Light Source: LED Ring Lights
Pixel: 2MP Resolution: 1920*1080P
High Light:

HDMI Output electronic binocular microscope

,

2MP electronic binocular microscope

,

1920x1080P measurement digital microscope

HDMI Output Digital Electronic Binocular Microscope Measurement 2MP 1920x1080P



M20114 is mainly designed for image capturing, video recording and measuring etc.



Features:



- This serial measurement microscope is digital measurement microscope with HDMI camera.

- It can be connected to a display screen directly, no need computer. Especially fit for factories.

- With 2 USB ports, USB mouse and USB flash card can be attached to it and do measurement, image capture and video record.



Item Description / Value M20114
Magnification: 14X-180X
Lens: 0.7-4.5X, Zoom ratio: 1:6.4 with 1X CCD video adapter lens.
  0.5X, 2X
Field range: 2-35mm
Moving distance: 65mm
Stage: 380*260mm
Illumination: High intensity LED ring light, brightness adjustable.
Camera:

2MP

** High Resolution HDMI Color CMOS Camera.

** Resolution: 1920*1080.

** 1/2 inch Full HD color CCD sensor.

** 60fps frame rate.

** Support USB flash disk for Image Capture.

** Cross lines overlay with adjustable position & color.

** Camera settings by Mouse for white balance, exposure, contrast, RGB, etc.

** Output: HDMI port.

Camera features: Image capture, video recording, measurement
Measurement soft:

For operation system under WIN10 (64bit).

Measure:

Length, distance from point to line, distance between 2 lines, diameterand radius of circle, center of a circle to a line, center of a circle to a point, length of a arc, circumference of a cicle, angle, radian, distance of centers of circles, rectangle square and perimeter, primeter and square of elipse, etc.

Monitor: 12~22 inch HDMI monitor.
Memory: USB flash disk 256M~32G
Power supply: AC100-240V, 50/60Hz.

Note: ● means standard, ○ means optional
