Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Biological Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Eyepiece: | WF10X | Light Source: | 6V 20W Halogen Lamp |
| High Light: | Trinocular Inverted Optical Microscope,WF10X Inverted Optical Microscope,PL L40X inverted biological microscope |
||

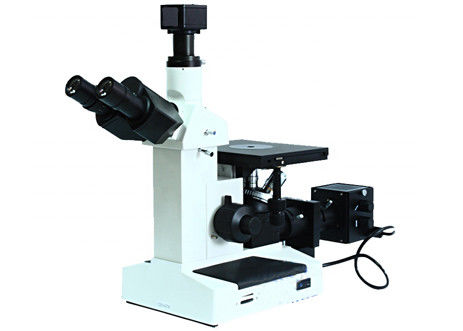

Trinocular Invented Measuring Metallurgical Microscope For Soldering Grain Size Analysis
M13108 Trinocular Invented Measuring Metallurgical Microscope For Soldering Grain Size Analysis. M13108 is an inverted metallurgical microscope specially designed for soldering grain size analysis.
Features:
- It is invented metallurgical microscope, fit for observing metal structure.
- It is an ideal microscope for mineral research and material analysis.
| Item | Description / Value |
| Optical system: | Achromatic optical system |
| View tube: | Trinocular, Hinge trinocular, 30° Tilt |
| Eyepiece: | WF 10 × (Φ18mm) |
| Objective: | Flat field long working distance metallurgical objective(None cover glass): PL 5X/0.25, PL L20X/0.4, PL L40X/0.6, PL L100X/0.25 |
| Nosepiece: | Four-position |
| Stage: | Double layer mechanical stage:184×140mm, moving range: 75mm×50mm. |
| Focusing mechanism: | Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm. |
| Filter: | Yellow filter, green filter, blue filter, grand glass. |
| Light source: | 6V/20W halogen lamp |
