Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Monocular | Theory: | Biological Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Magnification: | 40X-640X | Nosepiece: | 3 Holes |
| Eyepiece: | 10X/16X | Viewing Head: | 360 Rotatable |
| Stage: | Fixed With Compression Spring, 90*90mm | ||
| High Light: | Drawtube Student Biological Microscope,Monocular Student Biological Microscope,Student Biological Microscope 640X |
||

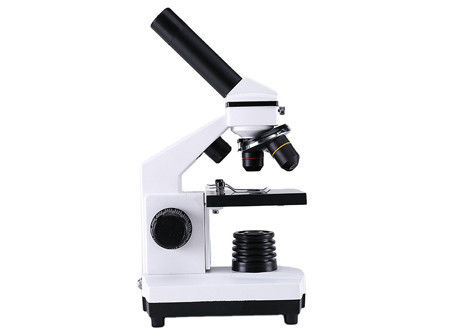

Monocular Drawtube Student Biological Microscope 640X
M11114 Monocular Drawtube Student Biological Microscope 640X. It is widely used for agricultural research units, secondary and primary schools. Specimens of various organisms, such as spores, cross-sections of rhizomes, pollen, heads, wings, feet, eggs and footprints of insects were observed under transmitted light. Built-in LED illumination system is both on top and bottom.
Features:

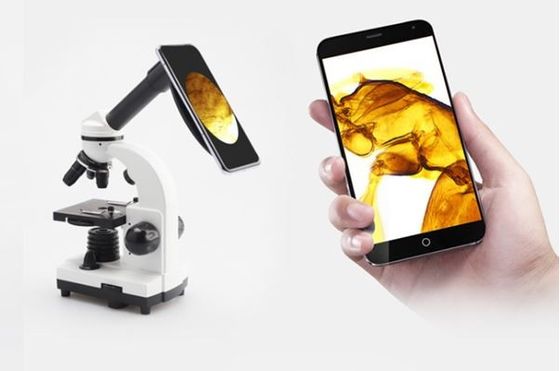

- Observe via mobile is available by using special clip.

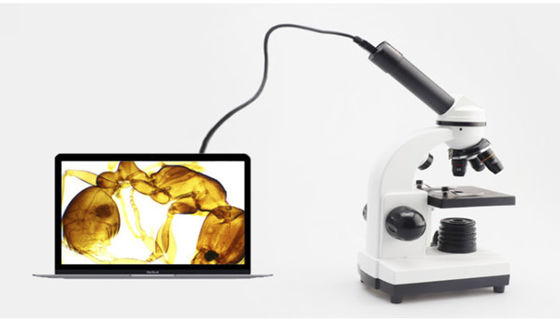

- Observe via PC is available by using 5M CCD.
- 10X and 16X eyepieces are both available.
- 4X 10X 40X Achromatic objectives.
- LED illumination, 0.5W, top and bottom.
| Item | Description / Value | Configuration |
| Drawtube | Monocular head 45° sloping, length 160mm | ● |
| Eyepiece | Flat field 10X, View field 18mm | ● |
| Flat field 16X, View field 11mm | ● | |
| Objective | Achromatic objective lens 4X, N.A. Value 0.10, Working distance 37.5mm | ● |
| Achromatic objective lens 10X, N.A. Value 0.25, Working distance 7.31mm | ● | |
| Achromatic objective lens 40X, N.A. Value 1.65, Working distance 0.50mm | ● | |
| Magnification | 40X-640X | ● |
| Focusing range | Coarse micro coaxial, coarse adjustment stroke 8mm, fine tuning grid value 0.2mm | ● |
| Stage | Fixed stage with compression spring, 90*90mm | ● |
| Illumination | Built-in 0.5W LED lamp, top and bottom, brightness adjustable | ● |
| Phone adapter | For mobile phone | ○ |
| Electronic eyepiece | CCD 5M, USB2.0 | ○ |
| Power | Power adapter, 220V | ● |
Remarks: ● means standard ○ means optional
Packing details:
| Size | Length*Width*Height, 14*10*28cm |
| Gross Weight | 1.5kg |
| Packing | Carton |
