100X 20X Binocular Inverted Metallographic Microscope Bright Dark Field Observation

100X 20X Binocular Inverted Metallographic Microscope Bright Dark Field Observation
100X 20X Binocular Inverted Metallographic Microscope Bright Dark Field Observation

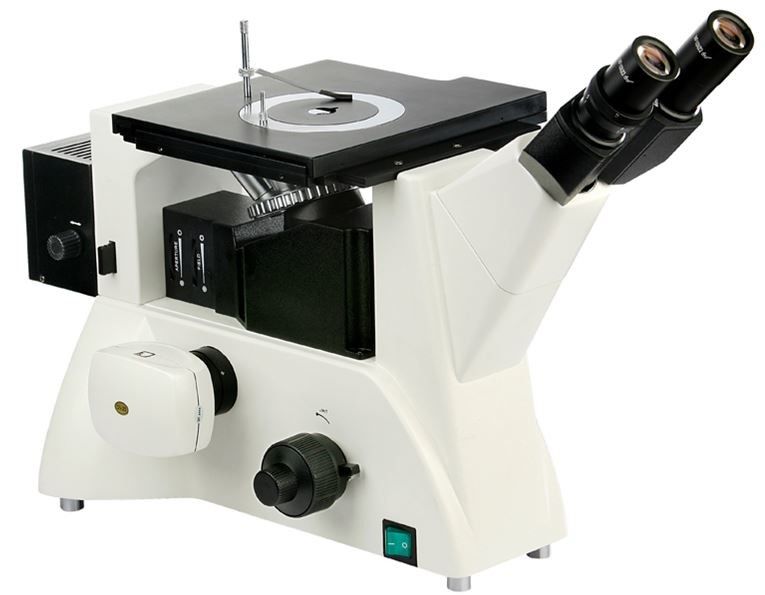

Large Image :  100X 20X Binocular Inverted Metallographic Microscope Bright Dark Field Observation

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13114
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

100X 20X Binocular Inverted Metallographic Microscope Bright Dark Field Observation

Description
Color: White Drawtube: Binocular
Theory: Metallurgical Microscope Application: Machinery, Electronics, Plastics Etc.
Eyepiece: WF10X/22mm Magnification: 100X-1000X
Objective: 10X, 20X, 50X, 100X Nosepiece: 5 Holes Nosepiece
Focusing: Coaxial Coarse And Fine Adjustment Illumination: 6V30W Halogen
High Light:

100X inverted metallographic microscope

,

1000X inverted metallographic microscope

,

20X binocular metallurgical microscope



Inverted 100X-1000X Metallurgical Microscope Combinated With Bright & Dark field, Observation



M13114 Inverted 100X-1000X Metallurgical Microscope Combinated With Bright & Dark field, Observation. M13114 Inverted metallurgical microscope is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Compact and steady main frame body is embodiment for the shock resistance. The ideal ergonomic design is adopted in this unit and has easier operation and wider space. This is ideal optical instrument for micro observation in metallographic structure and surface morphology. It is suitable for research in metallography, mineralogy, precision engineering, etc.



Features:

  • Infinity plan achromatic objective has two options, bright field only, bright & dark field.
  • Compact and steady main frame body is embodiment for the shock resistance.
  • Equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation.



Items Specification M13114A M13114B
Eyepiece WF10X/22mm
Infinity plan achromatic objective PL L10X/0.25 for bright field, Work distance: 20.2 mm
PL L20X/0.40 for bright field, Work distance: 8.80 mm
PL L50X/0.70 for bright field, Work distance: 3.68 mm
PL L100X/0.85(Dry)for bright field, Work distance: 0.40 mm
PL L5X/0.12 BD for bright & dark field, Work distance: 9.70 mm,
PL L10X/0.25 BD for bright & dark field, Work distance: 9.30 mm
PL L20X/0.40 BD for bright & dark field, Work distance: 7.23mm
PL L50X/0.70 BD for bright & dark field, Work distance: 2.50 mm
Eyepiece tube Inclination angle is 45˚ and interpupillary distance is 53~75mm.
Focus system Coaxial coarse/fine focus, with tension adjustable,minimum division of fine focusing is 2μm.
Nosepiece Quintuple (Backward ball bearing inner locating)
Stage Mechanical stage overall size: 242mmX200mm and moving range : 30mmX30mm. Rotundity and rotatable stage size: maximal measurement is Ф130mm and minimal clear aperture is less then Ф12mm.
Illumination system 6V30W halogen and brightness enable control.
12V50W halogen and brightness enable control.
Integrated field diaphragm, aperture diaphragm and puller type polarizer.
Equipped with frosted glass and yellow ,green and blue filters
Optional Accessory Dividing eyepiece 10X /22mm
5X,40X,60X,80X,100X(Oil) Bright field objective
40X,60X,80X,100X Bright & dark field objective
CCD adapter 0.5X,1X
Camera USB output: 1.3M/2.0M/3.0M pixel , VIDEO output: 380/520 TV Line
Digital camera adapter: CANON(EF) NIKON( F)

Note: ● means standard, ○ means optional
