10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use

10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use
10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use 10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use

Large Image :  10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M10130
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Metallurgical Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 50X~1000X
Eyepiece: WF10X/18mm Focusing: Coarse Focusing
Nosepiece: Quadruple Nosepiece Objective: 5X, 10X, 20X, 50X
High Light:

10X 20X Optical Metallurgical Microscope

,

Trinocular Optical Metallurgical Microscope

,

50X-1000X trinocular metallurgical microscope



50X-1000X Binocular Tinocular Metallurgical Microscope For Bright Field Use



M10130 50X-1000X Binocular Tinocular Metallurgical Microscope For Bright Field Use. The M10130 series with Vertical Koehler Halogen Incident (Reflected) illumination is the new and cost-effective Metallurgical Microscope. They employ all new and improved optics. Infinity Corrected Optical System with all new and improved Epi-Plan Optics makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.



Features:

  • Vertical Koehler Halogen Incident (Reflected) illumination.
  • New type of cost-effective Metallurgical Microscope.
  • Four types to choose for diversified application.
  • Camera could be introduced to upgrade easily.
  • Both Halogen and LED illuminations are available.



Item Specification M10130A M10130B M10130C M10130D
Observation Tube: Binocular head inclined at 30°
Trinocular head inclined at 30°
Interpupillary distance: From 50-75mm
Eyepiece: WF10X/18mm ●● ●● ●● ●●
Objectives: Plan metallurgical objectives 5X, 10X, 20X(spring), 50X(spring)
Stage:

Mechanical stage (reflected type)

with size 142x135mm, X-Y travel is

76x52mm



Mechanical stage (transmitted

type) with size 142x135mm, X-Y

travel is 76x52mm


Nosepiece: Quadruple Nosepiece
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 1um
Condenser: N.A. 1.25Abbe condenser with iris diaphragm
Illumination: Reflected light 12V 50W

Reflected light 12V 50W

Transmitted light 6V 20W


Power supply: 100-240V
Standard accessories: Dust cover, fuse, power cord
Optional accessories WF10X/20mm eyepiece ○○ ○○ ○○ ○○
WF10X/20mm reticule eyepiece ○○ ○○ ○○ ○○
80X plan metallurgical objective
100X plan metallurgical objective (dry)
3W LED for transmitted light
5W LED for reflected light
C-mount adapter
digital camera adapter
digital camera eyepiece

Note: ● means standard, ○ means optional

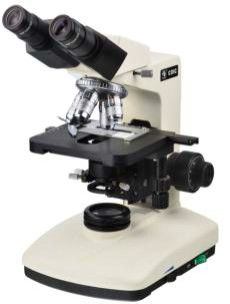

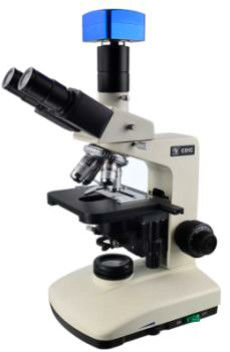

10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use 0          10X 20X Optical Metallurgical Microscope Trinocular For Bright Field Use 1
          M10130A/C/D                                                          M10130B
