Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing

Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing
Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing

Large Image :  Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M14111
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Polarizing Metallurgical Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 40X-800X
Eyepiece: WF10X/20mm Focusing: Coaxial Coarse & Fine
Nosepiece: 5-Positions Objective: 4X, 10X, 40X, 60X
High Light:

Trinocular Optical Polarizing Microscope

,

40X Optical Polarizing Microscope

,

800X binocular metallurgical microscope



Stain-free or Plan Metallurgical Objectives 40X-800X Binocular Trinocular Metallurgical Polarizing Microscope



M14111 Stain-free or Plan Metallurgical Objectives 40X-800X Binocular Trinocular Metallurgical Polarizing Microscope. M14111 Polarizing microscope delivers reliability and comfort through precision opto-mechanical engineering. Tight design tolerances with the SF (strain-free) optical series produce near-zero optical impurity interference. Careful attention to the sub-stage polarized extinction disc and individually centerable objectives yield a highly controlled light path with respect to stage orientation, and ultimately a sharp contrast image.



Features:

  • Diversified binocular and trinocular view heads to choose.
  • Illumination system includes transmitted light and reflected light.
  • Rotatable stages.
  • Stain-free objectives for polarized light observation



Item Specification M14111A M14111B M14111C M14111D M14111E M14111F
Observation Tube: Binocular head inclined at 30°
Trinocular head inclined at 30°
Interpupillary distance: From 50-75mm
Eyepiece: WF10X/20mm eyepieces, WF10X/20mm reticule eyepiece ●● ●● ●● ●● ●● ●●
Objectives:

stain-free objectives

4X, 10X, 40X(spring), 60X(spring)



Plan metallurgical objectives

5X 10X, 20X, 50X(spring)


Stage: rotatable stage φ 140mm
Focusing: Coaxial focusing knob, fine focusing is graduated in increment of 1um
Condenser: Height adjustable Abbe N.A. 1.25 condenser with iris diaphragm and 360°- swing out - rotatable polarizer
Illumination: Transmitted light 6V 20W
Reflected light 12V 50W


Reflected light 12V 50W

Transmitted light 6V 20W


Power supply: 100-240V
Standard accessories: Dust cover, fuse, power cord
Optional accessories φ160mm rotatable stage
80X plan metallurgical objective
3W LED for transmitted light
5W LED for reflected light
C-mount adapter
digital camera adapter
digital camera eyepiece
3M/5M/10M/16M/HD camera

Note: ● means standard, ○ means optional

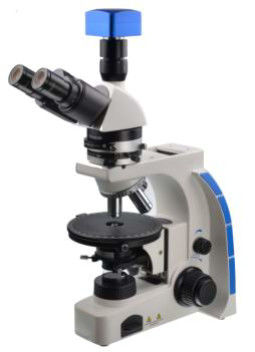

Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing 0

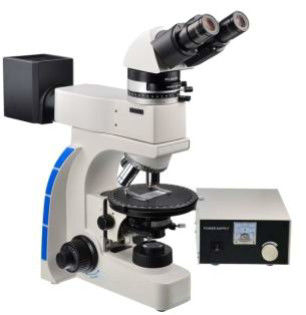

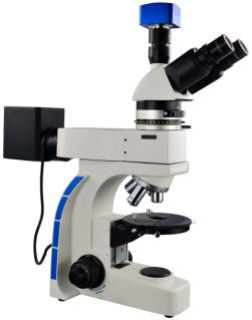

Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing 1               Trinocular Binocular Optical Polarizing Microscope 40X 800X Polarizing 2
