Product Details:
|
Optical System: | BF Bright Field, Semi-APO, Semi Apochromatic | Stage: | Motorized XYZ Stage |
---|---|---|---|
Camera: | Cooling Digital Camera | Nosepiece: | Motorized & Coded |
Adapter: | 0.5x C-Mount, For 1/2"CCD, Focus Adjustable | Viewing: | 6 Holes Disk Fluorescence Unit |
Measurement: | One Key Auto Measurement | Software: | NOMIS Basic Image Processiing Software |

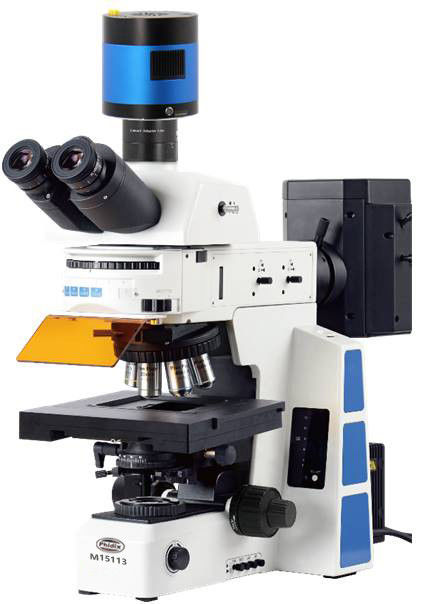

Research-grade 3D automatic fluorescence microscope with super depth of field
The M15113 is newly designed Full Auto Motorized Research Level Scientific Laboratory Microscope, equipped with electric platform, auto focus, electric objective conversion, and powerful imaging software; Through the precise connection between the parts, the functions of microscope observation, image acquisition and image processing are realized, and the repetitive operation is reduced. In addition, it can restore the microscope settings and parameter settings of the last operation, and improve the stability and accuracy of microscope imaging. Microscope operation can be so fast and efficient.
Items |
M12146 Motorized Research Level Biological Microscope M15113 Motorized Research Level Fluorescent Microscope |
M12146 | M15113 | |
Optical System | NIS60 Infinity Optical System | ● | ● | |
Observation Method
|
BF, Bright Field | ● | ● | |
DF, Dark Field | ○ | ○ | ||
PL, Polarizing | ○ | ○ | ||
PH, Phase Contrast | ○ | ○ | ||
FL, Fluorescent | ○ | ● | ||
DIC | ○ | ○ | ||
Main Body | Manual Body + Halogen Illumination | ● | ● | |
Manual Body + LED Illumination | ● | ● | ||
Head | Seidentopf Binocular Head, Inclined 30°, Interpupillary Distance 47-78mm | ○ | ○ | |
Seidentopf Trinocular Head, Inclined 30°, Interpupillary Distance 47-78mm, 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | ● | ● | ||
Ergo Tilting Trinocular Head, Inclination 0°~35°, Interpupillary Distance 47-78mm, 3 Level Light Split Switch E100:P0/E20:P80/E0:P100 | ○ | ○ | ||
Digital Camera |
7.0M USB3.0 CMOS Cooling GS Shutter Digital Camera, For Fluorescent Imaging,, 1.1” CMOS, FPS 12@3200x2200, 33@1600x1100, Semi-Conductor Cooling Range -42°C, Anti-Frog, One Hour Exposure, G Sensitivity Dark Signal 2058mv with 1/30s |
● | ● | |
Eyepiece | SW10x/25mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ● | ● | |
SW10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ||
EW12.5x/16mm, High Eyepoint | ○ | ○ | ||
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ||
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm | ○ | ○ | ||
Nosepiece | Manual Nosepiece, Quintuple, Backward, Center Adjustable | ○ | ○ | |
Manual Nosepiece, Sextuple, Backward | ● | ● | ||
Motorized Coded Nosepiece, Sextuple, Backward | ○ | ○ | ||
With Slot For Polarizing Compensator Slider Or DIC Slider | ● | ● | ||
Protect Cover For Nosepiece Holes | ● | ● | ||
N-PLFN Infinity Plan Semi-APO Fluorescent Objective |
PlanF S-APO 4x/0.13, W.D.16.5mm, Cover Glass 0.17mm | ● | ● | |
PlanF S-APO 10x/0.30, W.D.8.1mm, Cover Glass 0.17mm | ● | ● | ||
PlanF S-APO 20x/0.50, W.D.2.1mm, Cover Glass 0.17mm | ● | ● | ||
PlanF S-APO 40x/0.75, W.D.0.7mm, Cover Glass 0.17mm | ● | ● | ||
PlanF S-APO 100x/1.30(Oil), W.D.0.15mm, Cover Glass 0.17mm | ● | ● | ||
NIS60 N-PLN Infinity Plan Objective |
2x/0.06, W.D.7.5mm, Cover Glass 0.17mm | ○ | ○ | |
4x/0.10, W.D.30mm, Cover Glass 0.17mm | ○ | ○ | ||
10x/0.25, W.D.10.2mm, Cover Glass 0.17mm | ○ | ○ | ||
20x/0.40, W.D.12mm, Cover Glass 0.17mm | ○ | ○ | ||
40x/0.65, W.D.0.7mm, Cover Glass 0.17mm | ○ | ○ | ||
50x/0.95(Oil, W.D.0.19mm, Cover Glass 0.17mm | ○ | ○ | ||
60x/0.8, W.D.0.3mm, Cover Glass 0.17mm | ○ | ○ | ||
100x/1.25(Oil), W.D.0.2mm, Cover Glass 0.17mm | ○ | ○ | ||
NIS60 APO Infinity Plan |
20x/0.75, W.D.1.1mm, Cover Glass 0.17mm | ○ | ○ | |
100x/1.45(Oil), W.D.0.13mm, Cover Glass 0.17mm | ○ | ○ | ||
Filter For Transmit Light |
Filter Holder On Base, Can Hold 3 Filters | ● | ● | |
Filter LBD | ○ | ○ | ||
Filter Green | ○ | ○ | ||
Filter Yellow | ● | ● | ||
Filter ND6 | ○ | ○ | ||
Filter ND25 | ○ | ○ | ||
Focusing |
Motorized & Manual Coaxial Coarse & Fine Focusing, Fine Division 0.001mm, Focusing Range 35mm, Coarse Stroke 37.7mm, Fine Stroke 0.1mm |
● | ● | |
Condenser | Swing-Out Condenser NA0.9/0.25 | ● | ● | |
Light Source | Transmit Kohler Illumination, Brightness Adjustable, 12V100W Halogen, External Lamp House . For A12.1091-H, A12.1093-H | ● | ● | |
Transmit Kohler Illumination, Brightness Adjustable, 3W S-LED, Built-in Main Body. For A12.1091-L, A12.1093-L | ○ | ○ | ||
ECO Function Support Auto Power Off After 30 Mins From Operator Leave To Save Energy | ● | ● | ||
Adapter | Eyepiece Adapter Dia.23.2mm | ○ | ○ | |
C-Mount 1.0x | ○ | ○ | ||
C-Mount 0.5x | ● | ● | ||
Software | NOMIS Basic Image Processiing Software | ○ | ○ | |
Dark Field | Dark Field Condenser, N.A. 0.7~0.9, Dry | ○ | ○ | |
Dark Field Condenser, N.A. 1.25~1.36, Immersion | ○ | ○ | ||
Dark Field Objective, Infinity Plan 100X, For Immersion Dark Field Observation |
○ | ○ | ||
Dark Field Objective, Infinity Plan 100X, With Iris Diaphragm, For Immersion Dark Field Observation |
○ | ○ | ||
Polarizing | Polarizer For Transmit Light Source, Swing-Out, On Collector | ○ | ○ | |
Analyzer For Transmit Light, Slide With Quartz Wedge Compensator |
○ | ○ | ||
Upgrade To A15.1091 Professional Polarizing Microscope | ○ | ○ | ||
Phase Contrast | Turret Phase Contrast Condenser, Center Adjustable | ○ | ○ | |
Centering Telescope 10x | ○ | ○ | ||
Infinity Plan Phase Contrast Objective N-PLN PH 10x/0.25 | ○ | ○ | ||
Infinity Plan Phase Contrast Objective N-PLN PH 20x/0.40 | ○ | ○ | ||
Infinity Plan Phase Contrast Objective N-PLN PH 40x/0.65 | ○ | ○ | ||
Infinity Plan Phase Contrast Objective N-PLN PH 100x/1.25(Oil) | ○ | ○ | ||
Fluorescent |
Reflect Mercury Epi-Fluorescent Illuminator, Turret Disc With 6 Positions For Fluorescent Filter Block, With Protect Barrier |
○ | ● | |
Power Supply Box 220V/110V Interchangeable, Digital Display | ○ | ● | ||
100W Mercury Lamp Housing | ○ | ● | ||
Fluorescent Filter B,G,U,V | ○ | ● | ||
DIC | Polarizer For Transmit Light Source | ○ | ○ | |
Turret DIC Condenser | ○ | ○ | ||
DIC Slide 10x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ||
DIC Slide 20x/40x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ||
DIC Slide 100x, Used With Semi-APO Fluorescent Objective | ○ | ○ | ||
DIC Slide With Analyzer 10x-20x | ○ | ○ | ||
DIC Slide With Analyzer 40x-100x | ○ | ○ | ||
Other Accessories |
Working Stage Holder Bracket | ● | ○ | |
Adapter To Adjust Eye Position | ○ | ○ | ||
Adapter To Lower The Stage Position 1" | ○ | ○ | ||
Immersion Oil | ● | ○ | ||
Allen Wrench | ● | ○ | ||
Power Cord | ● | ○ | ||
Short Eye Cover, For Eyepiece | ○ | ○ | ||
Long Eye Cover, For Eyepiece | ○ | ○ | ||
Eyepiece Micrometer, Cross | ○ | ○ | ||
Adapter Ring To Install Eyepiece Micrometer | ○ | ○ | ||
USB Cable | ○ | ○ |
Note: ● means standard, ○ means optional
Full Auto Microscope Scanning Software
2D 2DB
X/Y Motorized X/Y/Z Motorized
2D Plane Scan 2D Bevel Scan
2DF 3D
X/Y/Z Motorized X/Y/Z Motorized
2D Fusion Scan 3D Scan
