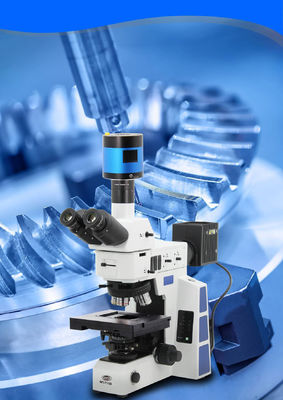

Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope

Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope
Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope

Large Image :  Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M17110
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope

Description
Optical System: BF/DF, Bright Field/Dark Field, Transmit & Reflect Light Observation Method: BF, Bright Field
CCD Adapter: 0.5x C-Mount, For 1/2"CCD, Focus Adjustable Eyepiece: High Eyepoint Plan PL10x/25mm, Diopter Adjustable
Nosepiece: BF/DF 6 Holes, With Socket For DIC Slide & Polarizing Analyzer Slide, For Metallurgical Coded & Motorized Control By Software Objective: 5x/0.15, W.D.=13.5mm
Transmit Light: 12V100W Halogen Lamp House, Pre-Centered Polarizing For Reflect: Fixed Polarizer Flashboard
Power: Built-In 100-240V Wide Voltage Transformer, Double-Way Power Output. Other: Allen Key M3, M4

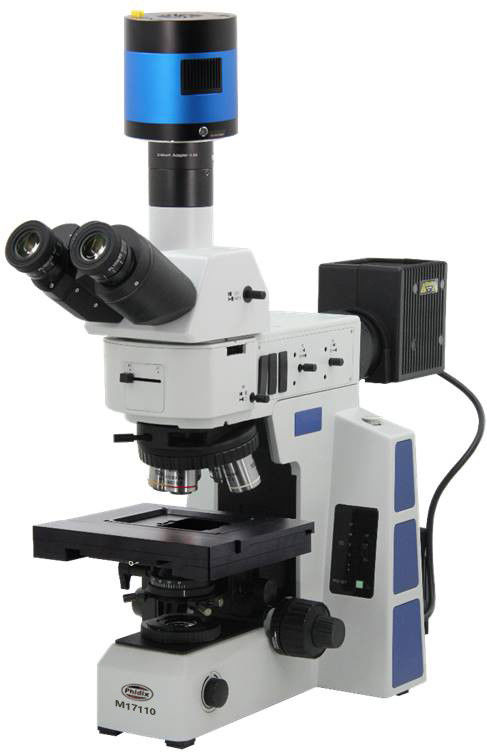

Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope



The new M17110 Research-grade Metallurgical Microscope has upgraded to XYZ motorized working stage model, combined with the powerful 2D/3D software, which integrates a number of firsts. From appearance to performance, it closely follows the international leading design trend. We will continue to provide customers with complete 3D industrial inspection solutions.

Cooperate with high-quality semi-apoptotic Semi-APO optical system, and translative lighting device, realize brightfield + darkfield + polarized light + DIC differential interference contrast full-featured observation method, XYZ motorized platform and software also provide fully automatic super software It integrates advanced functions such as 2D/3D high-speed imaging, depth-of-field fusion, auto-focus, etc.



● Infinity Plan Semi-APO BD DIC5x10x20x50x100x Objectives With 6 Holes Motor Nosepiece

● X/Y/Z Motorized Stage Large Moving Range 100x100mm Resolution 0.05um

● Full Auto 2D Scan Image Stitching With Quick & Precise Mode

● Upgradeable to 2D Pro & 3D Version Software Enable 3D Image Stitching & Measuring

● USB3.0 20M Cooling Fluorescent Digital Camera With Computer Pre Installed Software

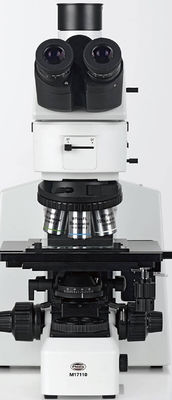

Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope 0

Items 3D Full Auto Super Depth of Field Upright Metallurgical Microscope M17110
Optical System BF/DF, Bright Field/Dark Field, Transmit & Reflect Light
PL, Polarizing
DIC, Different Interference Contrast

Observation

Method



BF, Bright Field
DF, Dark Field
PL, Polarizing
PH, Phase Contrast
FL, Fluorescent
DIC
Main Body

Reflected/Transmitted Body,

Digital Dimming System With Light Indicator, Brightness Set & Reset Function, With Condenser Holder

Head

30° Inclined Erect Image Infinity Gemel Trinocular Head, Interpupillary Distance

50~76mm, Light Splitting Ratio Switch E100:P0/E0:P100,

30° Inclined, Invert Image Infinity Gemel Trinocular Head, Interpupillary Distance

50~76mm; Light Splitting Ratio Switch E100:P0 /E20:8E0 /E0:P100

5-35° Tiltable, Inverted Image, Infinity Gemel Trinocular Head, Interpupillary

Distance 50~76mm; Light Splitting Ratio E50:E50 or E100:P0 or E0:P100

CCD Adapter 0.5x C-Mount, For 1/2"CCD, Focus Adjustable
0.35x C-Mount, For 1/2"CCD, Focus Adjustable
0.65x C-Mount, For 1/2"CCD, Focus Adjustable
1.0x C-Mount, For 1"CCD, Focus Adjustable
Digital Camera

7.0M USB3.0 CMOS Cooling GS Shutter Digital Camera, For Fluorescent Imaging,,

1.1” CMOS, FPS 12@3200x2200, 33@1600x1100, Semi-Conductor Cooling

Range -42°C, Anti-Frog, One Hour Exposure, G Sensitivity Dark Signal 2058mv with 1/30s

Eyepiece High Eyepoint Plan PL10x/25mm, Diopter Adjustable
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable
High Eyepoint Plan PL10x/25mm, Diopter Adjustable, With Reticle
High Eyepoint Plan PL10x/26.5mm, Diopter Adjustable, With Reticle
Nosepiece

BF/DF 6 Holes, With Socket For DIC Slide & Polarizing Analyzer Slide, For

Metallurgical Coded & Motorized Control by Software

Objective Infinity Plan Semi-APO LWD Metallurgical BF/DF DIC Objective
5x/0.15, W.D.=13.5mm
10x/0.30, W.D.=9mm
20x/0.50, W.D.=2.5mm
20x/0.40, W.D.=8.5mm
50x/0.80, W.D.=1.0mm
100x/0.90, W.D.=1.0mm
Infinity Plan Semi-APO LWD Metallurgical BF DIC Objective
5x/0.15, W.D..=19.5mm
10x/0.30, W.D..=10.9mm
20x/0.50, W.D.=3.20mm
50x/0.80, W.D.=1.20mm
100x/0.90, W.D.=1.0mm
Semi-APO Objective With Correcting Ring 50X/0.70, WD=2.3~2.9mm
DIC DIC Attachment, Apply For BD Objective
Transmit Light 12V100W Halogen Lamp House, Pre-Centered
12V100W Halogen Bulb (Philps 7724)
Swing-out Type Achromatic Condenser, N.A.0.9/0.25
Built-In Transmit Filters LBD/ND6/ND25
Focusing

Low-Position Coaxial Coarse & Fine Adjustment, Coarse Adjustment Distance:

25mm; Fine Precision: 0.001Mm. With Coarse Adjustment Stop And Tightness

Adjustment.

Reflect Light BF/DF Reflect Illuminator, With Iris Field Diaphragm and Aperture Diaphragm, Both Central Adjustable, With Filter Slot and Polarizing Slot, With BF/DF Switch
12V100W Halogen Lamp House, Pre-Centered
12V100W Halogen Bulb (Philps 7724)
Interference Filter, For Reflect Light, Neutral White
Interference Filter, For Reflect Light, Blue, <480nm
Interference Filter, For Reflect Light, Green, 520~570nm
Interference Filter, For Reflect Light, Red, 630~750nm

Polarizing For

Reflect

Fixed Polarizer Flashboard
360° Rotatable Analyzer Flashboard
Fixed Analyzer Flashboard
Power Built-In 100-240V Wide Voltage Transformer, Double-Way Power Output.
Other Allen Key M3, M4
Specimen Presser

Note: ● means standard, ○ means optional





Full Auto Microscope Scanning Software
Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope 1           Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope 2
                                   2D                                                                                     2DB
                         X/Y Motorized                                                                    X/Y/Z Motorized
                        2D Plane Scan                                                                     2D Bevel Scan
Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope 3          Research 3D Full Auto Super Depth of Field, Upright Metallurgical Microscope 4
                                2DF                                                                                   3D
                     X/Y/Z Motorized                                                                  X/Y/Z Motorized
                     2D Fusion Scan                                                                        3D Scan
