Product Details:
|
Color: | Gray | Customization: | OEM, ODM |
---|---|---|---|
Packing: | 1 PC/Carton | Warranty: | 1 Year |
Drawtube: | Binocular | Theory: | Stereo Microscope |
Magnification: | 7X-45X | Stand: | Flexible Arm |
Application: | Industry | Light Source: | Adjustable LED Lights |
High Light: | 45X Zoom Stereo Microscope,7X Zoom Stereo Microscope,Flexible arm binocular stereo microscope |

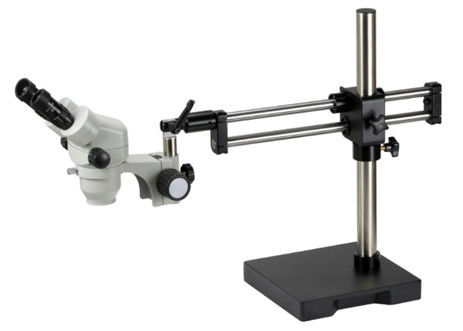

7X-45X Zoom Stereo Microscopes
M19100 7X-45X Zoom Stereo Microscopes The product could be widely used in various industrial applications with perfect performance.
Item | Description / Value |
Eyepiece: | Wide field and high eye point eyepiece SWH10X(Φ23mm), with U3 boom stand base size:254×254×40mm, the height of post: 475mm; diameter: Φ37mm; the length of double rails: 460mm,diameter: Φ19.05mm. |
Standard Magnification: | 7X-45X, Zoom ratio 6.4:1. |
Objectives: | 0.37X, 0.5X, 0.7X, 1.5X, 2X. |
Max. working distance: | 118mm. |
Magnification: | 7X-270X. |
Inter-pupillary distance adjustment range: | 52mm~76mm. |
Diopter adjustment: | ±6°(left drawtube). |
The range of adjusting the focus: | 50mm(the square post is 100mm). |
The diameter of the round post: | Φ25mm. |
The measurement to match between the support and the main body: | Φ76mm. |
The distance between from the post center to the main body center: | 140mm. |
The diameter of the centerworking stage: | Φ95mm. |
Trinocular/Binocular drawtubes horizontal inclined 45°and main body can be rotated: | 360°. |
eyepieces, auxiliary illuminators and kinds of stands and universal stands to be selected: | 15X, 20X, 30X. |
