Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Binocular |
| Theory: | Metallurgical Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X-1000X |
| Eyepiece: | WF10X/18mm | Nosepiece: | 4-Position |
| Objective: | 4X, 10X, 40X, 100X | Stage: | Double Layers Mechanical Stage |
| Focusing: | Coaxial Coarse And Fine Focusing System | Illumination: | 3W LED Lamp |
| High Light: | WF10X/18mm Student Biological Microscope,Phidix LED Student Biological Microscope,40X 100X microscopy biology discussion |
||
how to use a biological microscope?
WF10X/18mm 40X 100X Student Biological Microscope Biology Discussion 3W LED
M11112 WF10X/18mm 40X 100X Student Biological Microscope Biology Discussion 3W LED. The M11112 series Bright field Biological Microscope with stable rectangular base for stability. High resolution DIN Standard achromatic objectives offer crisp, clear, high contrast images. A built in integrated LED lamp provides high level illumination which can be adjusted to maximize the evenness of the bulb illumination. The BK Series also features a specially designed Achromatic N.A. 1.25 condenser with iris diaphragm. The die cast metal stand has a chemical resistant finish and is the most rugged, durable finish in the market today. Equipped with low position factory calibrated coaxial coarse and fine focus controls, tension adjustment and a built in stage stop lever to protect the specimen and objectives from accidental damage during use.
Features:
- Binocular/Trinocular head inclined at 30° with a full 360° of rotation.
- The WF10x/18mm eyepieces with pointer (optional) is ideal for schools to prevent any tampering.
- The holes rear-facing nosepiece makes transitioning between magnifications fast and easy.
- The DIN achromatic objectives can magnify microscope samples at 4x, 10x, 40x and 100x respectfully. - The mechanical stage on this model comes with durable stage clips to securely hold microscope samples and slides.
- The condenser comes equipped with a five aperture disc.
- Getting the user’s microscope sample in view is easy with the coaxial coarse and fine focusing knobs and adjustable tension control.
- Illumination is provided by a LED with an average lifespan of 10,000 hours.
| Item | Specification | M11112A | M11112B |
| Observation Tube: | Binocular head inclined at 30° | ● | |
| Trinocular head inclined at 30° | ● | ||
| Interpupillary distance: | From 48-75mm | ● | ● |
| Eyepiece: | WF10X/18mm | ●● | ●● |
| Objectives: | Achromatic 4X, 10X, 40X(spring), 100X(spring, oil) | ● | ● |
| Stage: | Mechanical stage with size 150x135mm,X-Y travel is 76x40mm | ● | ● |
| Nosepiece: | Quadruple Nosepiece | ● | ● |
| Focusing: | Coaxial focusing knob, fine focusing is graduated in increment of 2um | ● | ● |
| Condenser: | N.A. 1.25Abbe condenser with iris diaphragm | ● | ● |
| Illumination: | 3W LED lamp | ● | ● |
| Power supply: | 100-240V | ● | ● |
| Standard accessories: | Dust cover, immersion oil, fuse, power cord | ● | ● |
| Optional accessories | WF10X/20mm eyepiece | ○○ | ○○ |
| WF10X/18mm pointer eyepiece | ○○ | ○○ | |
| 20X achromatic objective | ○ | ○ | |
| 60X achromatic objective | ○ | ○ | |
| C-mount adapter | ○ | ||
| digital camera adapter | ○ | ||
| digital camera eyepiece | ○ |
Note: ● means standard, ○ means optional

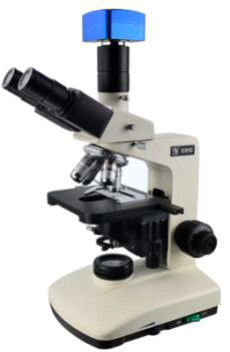

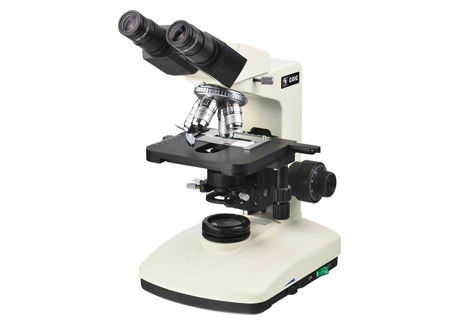

M11112A M11112B
