Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Biological Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Objective: | 4X/10X/40X | Light Source: | Halogen Lamp 6V/20W |
| Magnification: | 40X-1600X | Eyepiece: | WF10X/16X/100X |
| Application: | Research, Clinic, Health Diagnose | Condenser: | N.A.1.25 Abbe Condenser |
| High Light: | 40X 1600X inverted biological microscope,WF10X Trinocular inverted biological microscope,WF10X biological compound microscope |
||

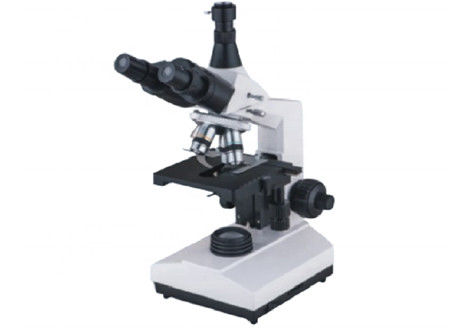

Trinocular Compound 40X-1600X Biological Microscope For School Lab
M11110 Trinocular Compound 40X-1600X Biological Microscope For School Lab M11110 is an economical biological microscope fit for school education, with trinocular drawtube. It has clear imaging, broad vision, and it can be widely used in biology, medicine, industry, agriculture and other fields.
Features:
- Trinocular view tube, simple structure.
- 10X, 10X, 40X, 100X achromatic objectives are enough for basic observation use.
- Only Halogen Lamp.
| Item | Description / Value |
| Optical system: | Achromatic optical system |
| View tube: | Trinocular, 45° Tilt |
| Eyepiece: | Wide-angle WF10 × (Φ18mm)/Monocular WF16X |
| Objective: | Achromatic objective: 4X, 10X, 40X(spring), 100X/(spring, oil) |
| Nosepiece: | Four-hole convertor |
| Stage: | Sigle layer mechanical stage. Motion ruler:132X140mm, moving range: 75mm ×45mm |
| Focusing mechanism: |
Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy:0.002mm. Coarse regulation:22mm |
| Light source: | 6V20W halogen lamp (or LED), the brightness is adjustable |
| Condenser: | N.A.1.25, with iris diaphragm. |
| Power supply: | AC 110V 60Hz or AC 220V 50Hz |
