Product Details:
|
| Customization: | OEM, ODM | Color: | White |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Binocular |
| Theory: | Biological Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Eyepiece: | WF10X/18mm |
| Nosepiece: | 4-Position | Stage: | 150*140mm/75*50mm |
| High Light: | WF10X Optical Metallurgical Microscope,PCB Inspection Optical Metallurgical Microscope,75x50mm light microscope biology |
||

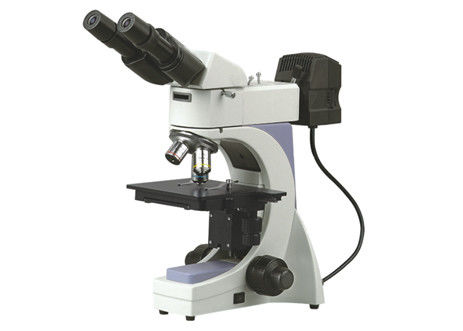

Binocular Metallurgical Microscope For PCB Inspection
M10117 Binocular Metallurgical Microscope For PCB Inspection. The Microscope is widely used for PCB board, LCD display and metal structure observation and inspection. With Ingenious stand and convenient operation, it will be the best choice for operators.
Features:
- Kohler illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W.
- 4-Position nosepiece offering more magnification choice
| Item | Description / Value |
| Eyepiece: | WF10X/18mm |
| View tube: | Binocular Head |
| Objective: | Infinity plan achromatic objectives, 4X, 10X, 40X |
| Nosepiece: | 4-position, quadruple |
| Focusing system: | Coaxial coarse/fine focus system |
| Stage: | Double layer mechanical stage, 150*140mm, moving range: 75*50mm |
| Illumination: | Kohler illumination, Epi-illuminator with iris aperture diaphragm and iris field diaphragm, 6V/20W. |
| Filters: | Blue, green, yellow & ground glass |
