Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Metallurgical Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Eyepiece: | WF10X/22mm |
| Stage Size: | 210*140mm | Magnification: | 7X-45X |
| Highlight: | 7X-45X Optical Metallurgical Microscope 7X,WF10X/22mm Optical Metallurgical Microscope 210x140mm,microscope for blood analysis 45X |
||

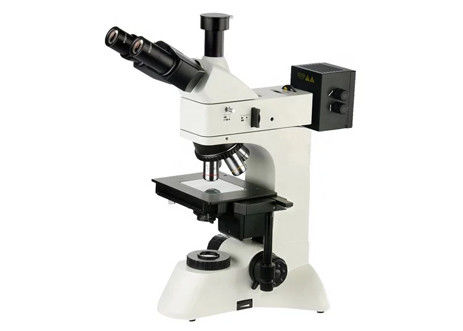

Upright Bright & Dark Field Camera Equipped Metallurgical Microscope
M10116 Upright Bright & Dark Field Camera Equipped Metallurgical Microscope. M10116 is a metallurgical microscope, function changeable from bright field to dark field. It is equipped camera which and realize the photo collection and video recording with light and sharp image.
Features:
- Bright field and dark field changeable.
- 5-Position nosepiece offering more magnification choice under bright and dark field.
- Camera USB output is up to 9M pixels.
| Item | Description / Value |
| Eyepiece: | WF10X/22mm |
| View tube: | Trinocular 30°Inclined, can be shot in 100% light flux |
| Objective: | Infinity plan achromatic objectives |
| Focusing system: | Coaxial coarse/fine focus system with tension adjustable and up stop, minimum division of fine focusing is 2um |
| Stage: | Double layer mechanical stage, 210*140mm, moving range: 75*50mm |
| Condenser: | Abbe NA 1.25, rack & pinion adjustable |
| CCD adapter: | 0.5X (with dividing), 1X |
| USB output: | up to 9M pixels |
| Video output: | 380/520 TV line |
| Packaging size: | 50*35*65 cm |
| Gross weight: | 22.00 kg |
