Product Details:
|
| Supply Ability: | 1000 PCS/Month | Color: | White |
|---|---|---|---|
| Customization: | OEM, ODM | Packing: | 1 PC/Carton |
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Metallurgical Microscope | Lead-time: | 15-20 Work Days |
| Magnification: | 50X-1000X | Eyepiece: | WF10x/22 |
| Nosepiece: | 5-Positions | Objective: | 5X/10X/20X/50X |
| Focusing: | Coaxial Coarse And Fine Focusing System | DIC Plug-in Piece: | DIC Plug-in Piece Working Together With The Objective |
| Illumination: | Coaxial LED Illuminator | Camera Adapter: | 0.5X Or 1X C-Mount |
| High Light: | 20X/50X microscope optical services,WF10x 22 microscope optical services,5X/10X LED trinocular microscope |
||

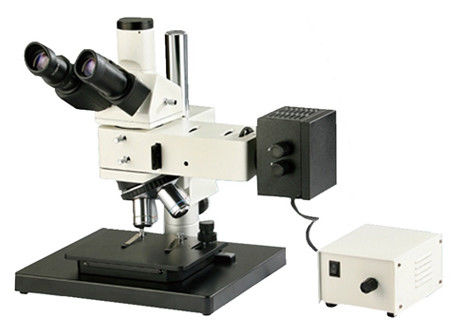

Trinocular Industry DIC Metallurgical Microscope
M10112 Trinocular Industry DIC Metallurgical Microscope This Industry checking and measure microscopes are suitable to observe surfaces structure and geometry of workpiece. It is equipped excellent UIS optical system and modularization function design so that update system expediently and achieved polarization, dark field observation. Lift or down the optical and illumination unit along the leader to adjust the distance from stage to objective, so that enable using for different thickness workpiece. Quickly and effectively locate the observation part of workpiece by moving the mechanical stage. The motion of the focusing is roll that the roller bearing moved guiding the trigon slide way, so that the moving process is smooth. This is ideal optical instrument for checking and measure in the field of precision part, integrated circuit, packing material etc.
Features:
- It is the ideal instruments in research work in electronic, metallography, mineralogy, precision engineering, etc.
- This microscope can be changed to toolmaker microscope with a magnification of 50X-1000X.
| Items | Specification | M10112A | M10112B |
| Eyepiece | WF10X/22mm | ● | ● |
| Infinity plan achromatic objective | PL L5X/0.12 for bright field, Work distance: 26.1 mm | ● | |
| PL L10X/0.25 for bright field, Work distance: 20.2 mm | ● | ||
| PL L20X/0.40 for bright field, Work distance: 8.80 mm | ● | ||
| PL L50X/0.70 for bright field, Work distance: 3.68 mm | ● | ||
| PL L5X/0.12 BD for bright & dark field, Work distance: 9.70 mm | ● | ||
| PL L10X/0.25 BD, Work distance: 9.30 mm | ● | ||
| PL L20X/0.40 BD, Work distance: 7.23mm | ● | ||
| PL L50X/0.70 BD, Work distance: 2.50 mm | ● | ||
| Eyepieces tube | Trinocular inclined 30˚, can be shot in 100% light flux. | ● | ● |
| Epi- illumination system | 6V30W halogen and brightness enable control | ● | |
| 12V50W halogen and brightness enable control | ● | ||
| Integrated field diaphragm, aperture diaphragm and (Y,B,G, ground glass) switching device. Push-pull type analyzer and polarizer. | ● | ● | |
| Focus system | Coaxial coarse/fine focus system, with coarse focus knob tension adjustable device, minimum division of fine focusing: 1μm. | ● | ● |
| Nosepiece | Quintuple (Backward ball bearing inner locating) | ● | ● |
| Working stage | Base overall size: 300mmX240mm , Mechanical stage overall size: 185mmX140mm, moving range: (Transversal)35mm, (Longitudinal)30mm | ● | ● |
| Optional Accessory | Dividing eyepiece 10X /22mm | ○ | ○ |
| 40X,60X,80X,100X (Dry) Bright field objective | ○ | ||
| 40X,60X,80X,100X Bright & dark field objective | ○ | ||
| CCD adapter, 0.4X,0.5X,1X,0.5X with dividing | ○ | ○ | |
| Camera, USB output: 1.3M/2.0M/3.0M pixel, VIDEO output: 380/520 TV Line | ○ | ○ | |
| Digital camera adapter: CANON(EF) , NIKON( F) | ○ | ○ |
Notes: ● means standard, ○ means optional
