Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Application: | Machinery, Electronics, Plastics Etc. | Eyepiece: | WF10X |
| Objective: | 5X/10X/20X/50X/100X | Magnification: | 5X/100X/200X/500X/1000X |
| High Light: | WF10X Phidix Medical Laboratory Microscope,200X 1000X Medical Laboratory Microscope,500X Phidix transmitted light microscope |
||

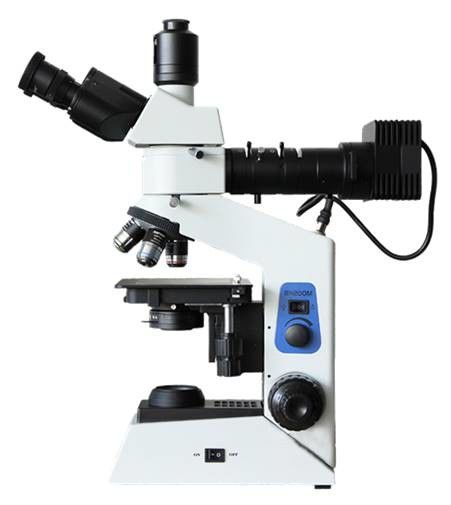

Trinocular Metallographic Microscope With Transmitted And Reflected Illumination For Material Analysis
M10110 is a high performance microscope with reflecting illumination system which can reduce the disturbing light and make the image clear. It is widely used for chip detecting, material analysis, mineral analysis, precise instrument etc.
Features:
- High performance, reflected and transmitted illustration, LED or 6V/30W halogen lamp, with center adjustable field stop and aperture stop.
- Simple polarizing, with analyzer and polarizer.
| Item | Description / Value | M10110 |
| View tube: |
Trinocular, Hinge trinocular, 30 ° incling, 360°rotating. IPD adjustment: 54mm ~ 75mm, Diopter adjustment: ± 5 diopters |
● |
| Eyepiece: | High eye level WF PL10 /18mm | ● |
| Optical system: | Plan Achromatic optical system | ● |
| Observation: | Bright field and simple polarizing | ● |
| View tube: |
Hinge trinocular, 30 ° Tilt, 360°rotating IPD adjustment: 54mm ~ 75mm Diopter adjustment: ± 5 diopters Splitting ratio: 80: 20 |
● |
| Magnification: | Standard Optical magnification: 50X/100X/200X/500X. | ● |
| Optional: 1000X | ○ | |
| Objective: | Flat field achromatic long working distance metallurgical objective, 5X, 10X, 20X, 50X | ● |
| Optional: 100X | ○ | |
| Nosepiece: | Quardruple | ● |
| Stage: | Double layer mechanical stage: 180 ×145mm, moving range: 76mm ×50mm. Right hand control for X and Y direction. | ● |
| Focusing mechanism: |
Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy: 0.002mm. Coarse adjustment: 28mm. |
● |
| Illumination: |
Reflected and transmitted illimulation. With center adjustable field stop and aperture stop. LED lamp or Halogen lamp. Brightness adjustable. |
● |
| Camera adapter: | 0.5X or 1X C-Mount | ● |
| Camera: | Optional | ○ |
| Power supply: | AC100-240V, 50/60Hz. | ● |
Note: ● means standard, ○ means optional
