Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Metallurgical Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Magnification: | 50X-1000X | Eyepiece: | PL10X |
| Objective: | 5X/10X/20X/50X/100X | Functions: | Dark Field, Polarization, DIC |
| Application: | Industrial Inspection, Measurement | Stage Size: | 200*300mm |
| High Light: | 50X trinocular compound microscope,1000X trinocular compound microscope,High Power toolmaker microscope |
||

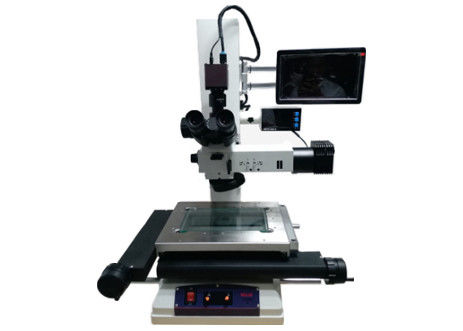

50X-1000X High Power Metallurgical Theory Toolmaker Microscope Measurement Microscope
M10114 50X-1000X High Power Metallurgical Theory Toolmaker Microscope Measurement Microscope. It is a professional polarizing microscope specially designed for mineralogy and geology research.
Features:
- Up to 1000X optical magnification.
- For high accuracy parts measurement.
- Large stage and movement range, fit for large size parts which a metallurgical microscope cann't measure.
- Stage can customer designed.
- Multi-function metallurgical optical system for vary application.
- Functional Measurement software.
- Report with measurement date.
| Item | Description / Value |
| View tube: | Trinocular with camera. Eyepiece: High eye level WF PL10 × (Φ22mm) |
| Observation: | Light field |
| Image: | Positive image or mirror image |
| Stage: |
Work table: 400*280, Moving range: 200*150mm Stage glass: 245*192mm Max height of test piece: 150mm |
| Objective: | 5X, 10X, 20X, 50X ,100X |
| Accuracy: |
Accuracy of measurement: (3 + L / 100) μm Resolution of Goniometer: 0.1 minute. |
| Digital Counter: |
Resolution of digital read out scale reading: 0.1 μm(X and Y) RS232 output. Zero set, Convert between metric and English system. |
| Focusing mechanism: |
Coaxial positioning system. Left hand and right hand shank. Coarse adjustment: 40mm/circle. Fine adjustment: 0.02mm/circle. |
| Focusing auxiliary illumination: | FA Dichroic prismatic focusing auxiliary system makes Z measuring more accurate. |
| Light source: |
Surface illumination attachment for measuring projection dimension (i.e. without shadow) for checking press mold inserts and Die profile. Bottom light: 5W LED, brightness is adjustable. |
| Size: | 607*793*720mm(80KG) |
| Power Supply: | AC 85~240V, 50/60Hz, 45W |
