Product Details:
|
| Supply Ability: | 1000 PCS/Month | Color: | White |
|---|---|---|---|
| Customization: | OEM, ODM | Packing: | 1 PC/Carton |
| Warranty: | 1 Year | Drawtube: | Monocular |
| Theory: | Metallurgical Microscope | Lead-time: | 15-20 Work Days |
| Eyepiece: | PL10X Scaled | Objective: | 2X/4X/5X/10X |
| Magnification: | 20X-100X | Illumination: | LED |
| High Light: | PL10X Optical Metallurgical Microscope,WD 7mm Optical Metallurgical Microscope,100X portable measuring microscope |
||

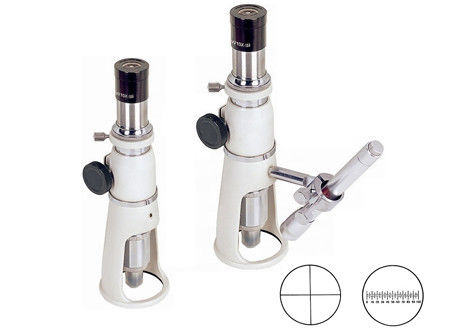

Portable Measuring Metallurgical Microscope With Scaled Eyepiece
M10115 Portable Measuring Metallurgical Microscope With Scaled Eyepiece. M10115 is designed for portable application so that the magnification is only up to 100X. But based on smaller volume and weight, it’s very convenient for moving observation.
Features:
- Scaled eyepiece.
- Application is concentrated on moving observation under the magnification limit by 100X.
| Item | Description / Value |
| Magnification: | Optional: 20X, 40X, 50X, 100X |
| Eyepiece: |
High eye level WF PL10 X /18mm Reticle of eyepiece: 0.1mm |
| Objective: |
Optional: 10X/0.25, WD 7mm 5X/0.12, WD 17.6mm 4X/0.1, WD 18mm 2X/0.05, WD 17.3mm |
| Focusing range: | 30mm |
| Illumination: | LED illumination |
| Power supply: | Battery |
