WF10X 40X 1600X Student Biological Microscope School Lab Compound Binocular

WF10X 40X 1600X Student Biological Microscope School Lab Compound Binocular
WF10X 40X 1600X Student Biological Microscope School Lab Compound Binocular

Large Image :  WF10X 40X 1600X Student Biological Microscope School Lab Compound Binocular

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M11109
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union

WF10X 40X 1600X Student Biological Microscope School Lab Compound Binocular

Description
Supply Ability: 1000 PCS/Month Color: White
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Objective: 4X/10X/40X/100X Light Source: Halogen Lamp 6V/20W
Magnification: 40X-1600X Eyepiece: WF10X/16X
Application: Research, Clinic, Health Diagnose Condenser: N.A.1.25 Abbe Condenser
High Light:

40X Student Biological Microscope

,

40X 1600X Student Biological Microscope

,

WF10X biology lab microscope



40X-1600X Binocular Compound Biological Microscope For School Lab

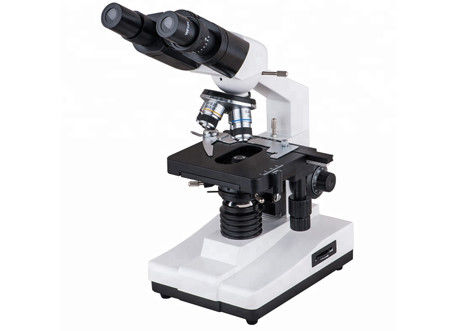

M11109 40X-1600X Binocular Compound Biological Microscope For School Lab M11109 is an economical biological microscope fit for school education, with binocular drawtube. It has clear imaging, broad vision, and it can be widely used in biology, medicine, industry, agriculture and other fields.



Features:



- Binocular view tube, simple structure.

- 10X, 10X, 40X,100X achromatic objectives are enough for basic observation use.

- Only Halogen Lamp.



Item Description / Value
Optical system: Achromatic optical system
View tube: Binocular, 45° Tilt
Eyepiece: Wide-angle WF10 × (Φ18mm)/Monocular WF16X
Objective: Achromatic objective: 4X, 10X, 40X(spring), 100X/(spring, oil)
Nosepiece: Four-hole convertor
Stage: Single layer mechanical stage. Motion ruler:132X140mm, moving range: 75mm ×45mm
Focusing mechanism:

Coaxial positioning system. Tightness and height limitation of coarse regulation are adjustable.

Fine adjustment accuracy:0.002mm. Coarse regulation:22mm

Light source: 6V20W halogen lamp (or LED), the brightness is adjustable.
Condenser: N.A.1.25, with iris diaphragm.
Power supply: AC 110V 60Hz or AC 220V 50Hz
