Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Binocular | Eyepiece: | WF10X /20mm |
| Working Distance: | 100mm | Illumination: | LED Ring Light |
| High Light: | WF10X/18 ultraviolet light microscope,10X ultraviolet light microscope,led light source for fluorescence microscopy |
||

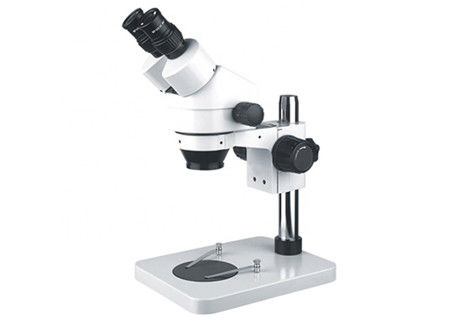

7-45X Binocular Zoom Stereo Microscope with LED Ring Light
M19145 is designed for various medical and industrial applications. With a simple structre, it’s more convenient for the users to observe and check sample status directly.
Specials:
- Long working distance and large field range.
- Suitable for medical and clinic, agroforestrial geology, pricise casting, especially for LED and PCB checking, chip detecting etc.
| Model | Specification/Value | M19145 |
| View tube | Binocular, Hinge trinocular, 45° inclined | ● |
| Zoom ratio | 1:6.4 | ● |
| Eyepiece | WF10× /20mm | ● |
| Objective | Standard: 0.7-4.5X | ● |
| Magnification | Standard: 7-45X | ● |
| Working distance | Max 100mm | ● |
| Depth of field | 15mm | ● |
| Illumination | LED ring light | ● |
| Stage baseplate | Φ95mm glass working board or black and white working board | ● |
| Stage size | 200X255cm | ● |
Note: ● means standard, ○ means optional
