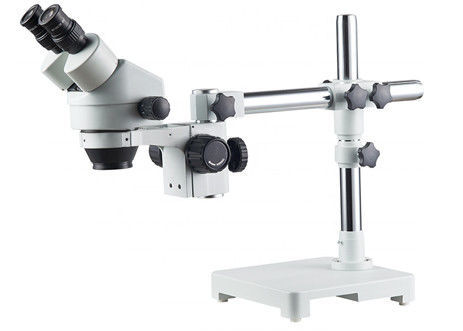

Single Arm Diamond Setting Microscope

Single Arm Diamond Setting Microscope
Single Arm Diamond Setting Microscope

Large Image :  Single Arm Diamond Setting Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949
Model Number: M19105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Single Arm Diamond Setting Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Binocular Theory: Stereo Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
High Light:

4.5X diamond setting microscope

,

Single Arm diamond setting microscope

,

Binocular stereo microscope for soldering



Binocular Zoom Without Light Source Single Arm Boom Stand Zoom Stereo Microscope



M19105 Binocular Zoom Without Light Source Single Arm Boom Stand Zoom Stereo Microscope With Upper And Lower Light Sources High-quality optical components coated with special coatings create high-quality optical images. A positive image with a flat image surface and good contrast is formed in the large field of view, especially in the peripheral field of view, the image quality is brighter and clearer. Using continuous zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~45X. Optional auxiliary objective lens, magnification 2X~225X. The effective standard working distance reaches 100mm, with optional auxiliary objective lens, the working distance will be expanded to 26 mm-287mm, creating enough space for use. The observation head is tilted at 45° or 60°, and the binocular diopter is adjustable to ensure that users with different eyesight can obtain clear and satisfactory images. The structure design conforms to the ergonomics, the best eye point height, and the long-term use does not feel fatigue. The zoom hand-wheel is set horizontally (axially) bilaterally, which is convenient and comfortable to operate and has high zoom repeat accuracy with a variety of accessories, expand the application field



Item Description / Value
Magnification: 7X-45X, Up To 3.5X-180X
Eyepiece: WF10X
Zoom Lens: 0.7-4.5X
Zoom Ratio: 1:6.5
Working Distance: 100mm, With Auxiliary Objectives 30~165mm
Field Of View: 1~95.2mm
Stand: Single Arm Boom Stand, Without Light Source
Packaging Size: 39X29X41 cm
Gross Weight: 5.50 kg
Head: Binocular
