Multi Stand Stereoscopic Binocular Digital Microscope Iphone 0.67X 4.5X

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Multi Stand Stereoscopic Binocular Digital Microscope Iphone 0.67X 4.5X

Multi Stand Stereoscopic Binocular Digital Microscope Iphone 0.67X 4.5X
Multi Stand Stereoscopic Binocular Digital Microscope Iphone 0.67X 4.5X

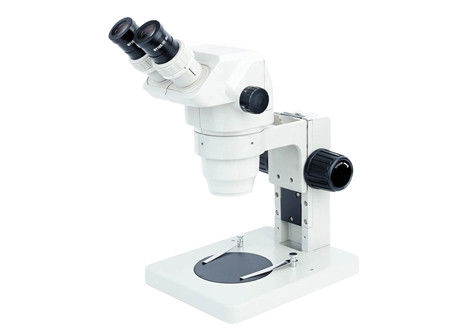

Large Image :  Multi Stand Stereoscopic Binocular Digital Microscope Iphone 0.67X 4.5X

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M19113
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Multi Stand Stereoscopic Binocular Digital Microscope Iphone 0.67X 4.5X

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Binocular Theory: Stereo Microscope
Eyepiece: WF10X Zoom Lens: 0.67X-4.5X
Zoom Ratio: 1:6.5 Field Of View: 1.6mm-114mm (With Auxiliary Lens)
Working Distance: Standard 100mm Lead-time: 15-20 Work Days
High Light:

Multi Stand Binocular Digital Microscope

,

Iphone Binocular Digital Microscope

,

4.5X stereoscopic binocular microscope



Multi Stand Electronic Binocular Digital Microscope For Iphone Repair



M19113 Multi Stand Electronic Binocular Digital Microscope For Iphone Repair High-quality optical components coated with special coatings create high-quality optical images. A positive image with a flat image surface and good contrast is formed in the large field of view, especially in the peripheral field of view, the image quality is brighter and clearer.



Features:



- Using continuous zoom objective lens 0.67X~4.5X (6.7:1), standard magnification 6.7X~45X. Optional auxiliary objective lens, magnification 2X~225X.

- The effective standard working distance reaches 100mm, with optional auxiliary objective lens, the working distance will be expanded to 26 mm-287mm, creating enough space for use.

- The observation head is tilted at 45° or 60°, and the binocular diopter is adjustable to ensure that users with different eyesight can obtain clear and satisfactory images.

- The structure design conforms to the ergonomics, the best eye point height, and the long-term use does not feel fatigue.

- The zoom hand-wheel is set horizontally (axially) bilaterally, which is convenient and comfortable to operate and has high zoom repeat accuracy.

- With a variety of accessories, expand the application field



Item Description / Value
Head: Binocular Head
Eyepiece: High eye point wide field eyepiece WF10X/22mm (micrometer can be installed)
Auxiliary objective: 0.3X/ 287mm
Focusing bracket: St1 focusing lens holder, adjustable handwheel for tightness, lifting range 50mm
Base: Vertical arm type flat base. (With focus lens holder)
Other external light sources: Ring light/LED light/fiber optic lighting
Photographic device: Photographic tube (with PK bayonet), 4X photography eyepiece
Camera device: 0.35X/0.5X/1.0X Type C camera connector
Other optional: Precision measurement platform, dark field condenser, jewelry clip, dust-proof mirror
Packaging Size: 39X29X41 cm
Gross Weight: 5.50 kg
