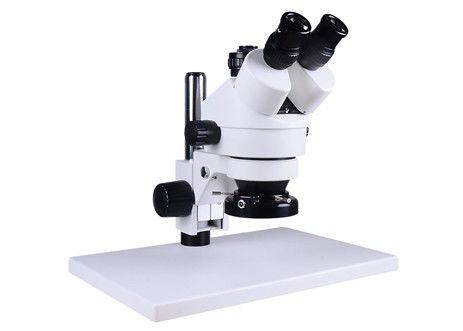

Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece

Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece
Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece

Large Image :  Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M19116
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Stereo Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Eyepiece: WF10X Zoom Lens: 0.7X-4.5X
Zoom Ratio: 1:6.5 Magnification: 7X-45X, Up To 3.5X-270X
Working Distance: 100mm, With Auxiliary Objectives 30~165mm Field Of View: 1~95.2mm
Highlight:

4.5X Zoom Stereo Microscope

,

45 Degree Zoom Stereo Microscope

,

270X stereo microscope for soldering



6.7X-45X 45 Degree Inclined Eyepiece Tube Stereo Zoom Microscopes For Electronics Inspection



M19116 6.7X-45X 45 Degree Inclined Eyepiece Tube Stereo Zoom Microscopes For electronics inspection, it’s able to enlarge small objects and form a positive three-dimensional image. Stereo microscopes are widely used in the electronics industry and the inspection, assembly, and repair of small precision parts, as well as biological anatomy and jewelry inspection.



Features:



- 10X wide angle eyepiece, made of all metal materials, using FMC anti-reflection coating.

- High light transmittance, high reflective index lens diameter 25.5mm.

- Diopter is adjustable. The pupil-distance adjustment range is 55-75mm.



Item Description / Value
Head: Hinged trinocular head
Eyepiece: Standard WF10X20, high angle wide angle eyepiece, provide convenience for observers wearing glasses
Optional eyepiece: WF10X20mm,WF15X15mm,WF20X10mm,WF25X9mm,WF30X8mm
Magnification: Standard 7X---45X, optional and auxiliary lenses can be extended to 2.1X---270X, continuous doubling
Objective: 0.7X-4.5X zoom range, objective magnification ratio 1:6.4, ensure image alignment
Auxiliary Lens: 0.3X, 0.5X, 0.7X, 1X, 1.5X ,2X for option
Working Distance: 100mm
Focus arm: 76mm diameter, 32mm pole size
Base: B3 column type big flat base(Standard), other base can be selected, see the base series for details
Illumination: Optional LED Illumination, see LED light source series diagram for details
Plate: Black/White plate



Electronics Zoom Stereo Microscope 270X 4.5X Soldering 45 Degree Inclined Eyepiece 0
