Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20115
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

3D Video 150X Optical Digital Microscope Hdmi Camera Motor Drive Industry

Description
Color: Black Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Monocular Theory: Digital Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 14X-150X Light Source: Adjustable LED Lights
Resolution: 1920*1080 Application: Industrial
High Light:

HDMI port Optical Digital Microscope

,

3D 150X Optical Digital Microscope

,

Video hdmi digital microscope



Motor Drive HDMI port Digital 3D Video Microscope For Industry

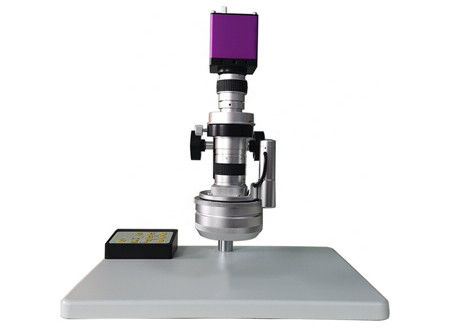

M20115 Motor Drive HDMIport Digital 3D Video Microscope For Industry M20115 is a digital 3D microscope, which is a high quality video microscope with HDMI camera. It can be connected to a display screen directly.



Features:



- The lens is driven by motor, it can rotate automatically. With the rotation of lens, the stereo image by different view angle will be displayed on the screen.

- The Image is stereo, user can see more details that normal video microscope can‘t get.

- With high definition image, it is fit for high precision metal hardware, plastic, electronic products, etc.



Item Description / Value
Magnification: 14X-150X
Resolution: 1920 x 1080
Field range: 2-16mm
Output frame rate: 60 frame
Output form: HDMI pure digital output
Capture mode: drive-by-wire
Accommodation mode: OSD menu accommodation
Storage mode: SD card
Observation ways: 3D 45° perspective
WDR: 3 levels of WDR adjustable
Edge enhancement: 3 levels of edge enhancement function
Color conditioning: R.G.B individual adjustable
Exposure mode: manual/automatic
White balance: white balance with one click
Adjust the height range: 120-380mm
Light source: adjustable LED light
Voltage: DC-5V
Aluminum alloy working table size: 380X260X26mm
Working Humidity: 20%-80%
Working temperature: 0-80°C
