HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

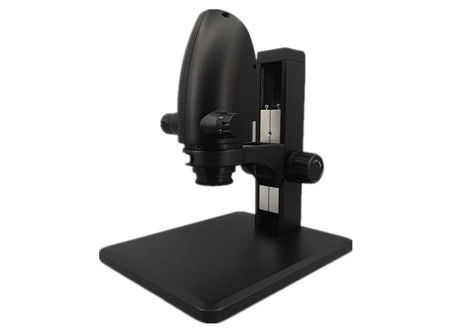

HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light

HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light
HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light

Large Image :  HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20117
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

HDMI Optical Digital Microscope PCB Video 0.7-4.5X LED Ring Light

Description
Color: Black Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Monocular Theory: Digital Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 14X-180X Lens: 0.7-4.5X
Illumination: LED Ring Light Power Supply: AC100V~240V, 50/60Hz
High Light:

HDMI Optical Digital Microscope

,

PCB Video Optical Digital Microscope

,

0.7-4.5X digital video microscope



Optical HDMI-Compatible Digital Video Microscope Industrial Measurement PCB Inspection



M20117 Optical HDMI-Compatible Digital Video Microscope Industrial Measurement PCB Inspection. M20117 is a video microscope specially designed for PCB inspection.



Features:



- One screen compare: to compare living image with a saved picture on one screen.

- Parfocal: focusing is easy with different zoom times.

- Cross line: up to 0-99 cross lines, with scale or without scale.

- Auto conversion of length unit: the system will automatically change measure unit between mm, mil, μm.

- Menu setting is viable. User can set the Menu according to requirement.



Item Description / Value
Magnification: 14-180X
Function: Take photo, record video, measure.
Sensor: Sony CMOS 1/2”.
Resolution/Pixels: 2 mega pixels, 1920*1080P
Lens zoom: 0.7X-4.5X.
Output: USB for memory and mouse control. HDMI for monitor.
Memory: USB flash disk.
Control: Camera settings by USB mouse for white balance, exposure time, contrast, RGB, etc.
Working distance: 100mm
Illumination: LED ring light. Brightness adjustable.
Measurement: Length, distance from point to line, distance between 2 lines, diameter and radius of circle, center of a circle to a line, center of a circle to a point, length of an arc, circumference of a circle, angle, radian, distance of centers of circles, rectangle square and perimeter, perimeter and square of eclipse etc.
Power supply: AC100V~240V, 50/60Hz.
Monitor(Optional): 19-32 inch.
