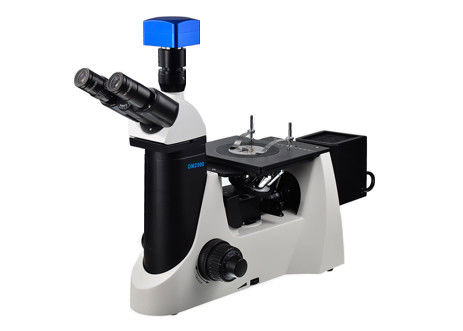

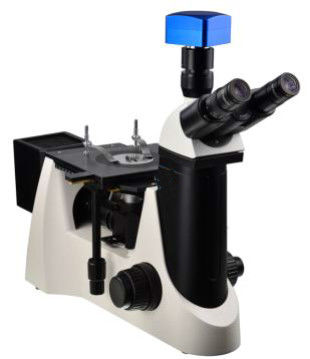

50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters

50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters
50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters 50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters

Large Image :  50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M13113
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Trinocular
Theory: Metallurgical Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 50X-1000X
Eyepiece: WF10X/20mm Nosepiece: 4-Position
Objective: 10X, 20X, 50X, 80X Stage: Double Layers Mechanical Stage
Focusing: Coaxial Coarse & Fine Illumination: 12V 50W Halogen Lamp
Highlight:

100X trinocular inverted microscope

,

800X trinocular inverted microscope

,

WF10X 20mm cell culture inverted microscope



50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters



M13113 50X-1000X Inverted Metallurgical Microscope Equipped With Yellow Blue Green And Polarizing Filters. The M13113 series has a slim wedge shaped design that saves bench space and offers excellent stability. The drop down stage controls are ergonomically positioned to provide comfort and ease of use for the operator. An integrated 12V 50W vertical Koehler halogen illuminator with a variable intensity control and automatic voltage sensing power supply provides excellent specimen illumination and contrast. The M13113 is designed to meet your most diverse needs for materials research. It is well suited for examination of mounted metallurgical specimens or for routine quality inspections such as micro-structure analysis, various materials testing, QA and QC examination and photomicrography. It is also equipped with yellow, blue, green, and polarizing filters.



Features:

  • A slim wedge shaped design that saves bench space and offers excellent stability.
  • An integrated 12V 50W vertical Koehler halogen illuminator.
  • Well suited for examination of mounted metallurgical specimens or for routine quality inspections.
  • Equipped with yellow, blue, green, and polarizing filters



Item Specification M13113
Observation Tube: Trinocular head inclined at 30°
Interpupillary distance: From 48-75mm
Eyepiece: WF10X/20mm , WF10X/18mm reticule eyepiece
Objectives:

Infinity plan achromatic 10X, 20X(spring), 50X(spring),

80X(spring) objectives

Stage:

Mechanical stage with size 180x155mm,X-Y travel is 80x50mm

with graduation of 0.1mm

Nosepiece: Quintuple nosepiece with Infinity Corrected F=200MM
Focusing:

Coaxial focusing knob, fine focusing is graduated in increment of

1um

Illumination: 12V 50W halogen lamp
Power supply: 100-240V
Standard accessories:

Dust cover, blue/ yellow/ green filter, fuse, simple polarization,

power cord

Optional accessories WF10X/22mm eyepiece
WF10X/22mm pointer eyepiece
WF10X/20mm reticule eyepiece
5X plan achromatic objective
100X plan achromatic objective(dry)
5W LED illumination
C-mount adapter
digital camera adapter
3M/5M/10M/16M/HD camera

Note: ● means standard, ○ means optional
