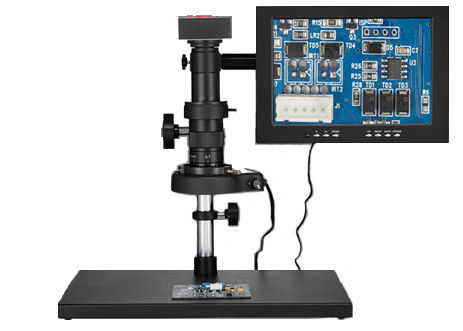

Video Digital 3D 4K Electronic Soldering Microscope With Camera

Video Digital 3D 4K Electronic Soldering Microscope With Camera
Video Digital 3D 4K Electronic Soldering Microscope With Camera

Large Image :  Video Digital 3D 4K Electronic Soldering Microscope With Camera

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Video Digital 3D 4K Electronic Soldering Microscope With Camera

Description
Customization: OEM, ODM Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Packing: 1 PC/Carton
Warranty: 1 Year Drawtube: Monocular
Theory: Digital Microscope Working Distance: 100MM
Color: Black Zoom Lens: 0.7-4.5X



Video Digital 3D 4K Electronic Soldering Microscope With Camera



The video microscope M20103 is suitable for the inspection of electronic industry production lines, the verification of printed circuit boards, the verification of soldering defects (printing misalignment, collapse, etc.) in printed circuit components, the verification of single-board PCs, the verification of vacuum fluorescent display VFD, and In Forestry Academy’s plant epidermis observation, beauty industry skin inspection, etc., it magnifies the actual image and displays it on the microscope screen, and can be taken into a picture or video for further analysis and processing, and the picture can also be saved, enlarged, and printed. Configure measurement software to measure various data.



Item Specification M20103
Optical lens: 0.7-4.5X zoom objective 0.5X eyepiece,1X objective lens(outfit)
Working distance: 100mm
Display: 12 inch color monitor, resolution 640*480,OSD menu, with cross-line function
Digital Camera: 5MP CMOS, 1/3 Sensor chip,800TVL(PAL)OSD menu
Output Interface: HDMI
  VGA Interface(Can be customized according to customer needs)
Magnification: 13-120X(Customized magnification is available according to customers' need)
Function: Real time observation, measurement, storage, photo taking, comparison
Base bracket: Various base brackets are available
Accessories: DC 12V 2A power supply, USB cable, CD-ROM, LED ring light

Note: ● means standard, ○ means optional
