Trinocular 10X 20X Digital Microscope With Lcd Screen Portable White

Trinocular 10X 20X Digital Microscope With Lcd Screen Portable White
Trinocular 10X 20X Digital Microscope With Lcd Screen Portable White

Large Image :  Trinocular 10X 20X Digital Microscope With Lcd Screen Portable White

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular 10X 20X Digital Microscope With Lcd Screen Portable White

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Magnification: Customized Working Distance: 100mm
Eyepiece: Optional Objective: Two Options
LCD Screen: HD LCD NA Value: N.A.1.25
Illumination: 3W LED Nosepiece: Reversed Quadruple Nosepiece
High Light:

20X digital microscope with lcd screen

,

10X digital microscope with lcd screendigital microscope with lcd screen

,

portable lcd digital microscope



Trinocular LCD Digital Video Electron Biological Microscope For Laboratory

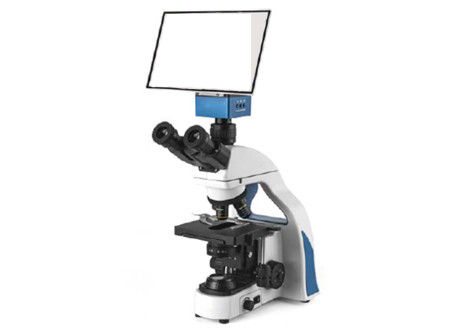

M12106 Trinocular LCD Digital Video Electron Biological Microscope For Laboratory. The product is a high quality biological microscope which is an ideal choice for basic research and teaching experiments. With infinity color correction optical system and excellent compound eye illumination system, it can get uniform illumination, clear and bright images at any magnification. User-friendly design, simple and convenient operation, even students can easily master. Similarly, same as all the other microscopes, M12106 maintains excellent reliability and durability, and is suitable for high-intensity use in the education market.



Features:



- Large inter-pupillary distance adjustment range brings professional observation experience.

- User-friendly design to increase comfort and safety.

- Compound Eye illustration system, lighting ideal light path.

- Continuously adjustable light intensity, easy to operate.

- Power wire easy to store.



Item Description / Value
Theory: Biological microscope
Head: Trinocular
Optical System: Infinity color corrected optical system
Eyepiece:

high eye point wide field plan eyepiece PL 10X/18mm, with adjustable diopter

high eye point wide field plan eyepiece PL 10X/20mm, with adjustable diopter

Objective:

Infinity plan achromatic objective (4X,10X,20X,40X,60X,100X)

Infinity plan positive phase contrast objective (10X,20X,40X,100X)

Nosepiece: reversed quadruple / quintuple nosepiece
Focusing Mechanism: low position coaxial focusing mechanism, coarse range: 25mm, fine precision: 0.002mm, with tension adjustment and upper limit
Stage:

150mm X 140mm double-layer composite mechanical moving stage, double slice clamps, moving range: 76mm x 50mm; accuracy: 0.1mm
(triangular guide rail)

150mm X 162mm double-layer composite mechanical moving stage, double slice clamps, moving range: 76mm x 50mm; accuracy: 0.1mm (X-axis single rail driving) without rack protruding structure, stage surface with wear resistant and corrosion resistant treatment

Transmission Illumination System: N.A.1.25 compound eye illumination condenser group (with plug-in phase contrast and dark field accessories' interface), condenser preset center, optional lifting function, adaptive 100V-240V switching power supply, single high brightness 3W LED (cold/warm color optional, cold color temperature 4750K-5500K, warm color temperature 2850K-3250K) (preset center), light intensity can be continuously adjusted
Camera Adapter: 0.35X/0.5X/0.65X/1X C-mount adapter, focusing adjustable
Others: polarizers, analyzers, color filters, filters, phase contrast panels, dark field panels
