Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope

Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope
Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope

Large Image :  Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949, CE
Model Number: M12125
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope

Description
Color: White Customization: OEM, ODM
Warranty: 1 Year Drawtube: Binocular
Theory: Biological Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Eyepiece: WF10X/23mm
Nosepiece: 5-Position Stage: Double Layers Mechanical Stage
High Light:

WF10X/23mm Lab Biological Microscope

,

Binocular Lab Biological Microscope

,

Trinocular kohler illumination microscope

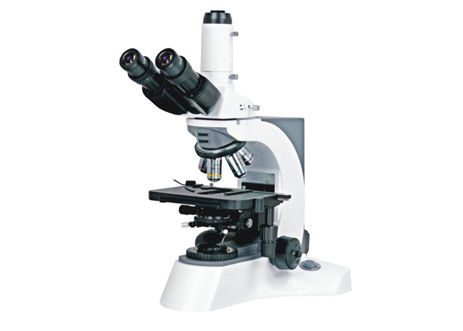

Trinocular Laboratory Biological Microscope With Kohler Illumination



M12125 Trinocular Laboratory Biological Microscope With Kohler Illumination. This series biological microscope has Kohler illustration. Further expansion is available, such as photo attachment, polarization attachment, turret phase contrast kit, dark field attachment and Epi-fluorescent attachment etc.



Features:



- Kohler external illumination.

- Double layers mechanical stage 185*142mm, moving range 75*55mm.

- Infinity optical system.



Item Description / Value
View tube: Trinocular Head
Eyepiece: WF10X/23mm
Nosepiece: 5-position, Quintuple
Objectives:

Infinity plan achromatic objective: 4X, 10X, 40X, 100X

Infinity plan achromatic objective: 20X, 60X

Plan S-Apo objective: 4X, 10X, 20X, 40X, 100X

Condenser: NA=0.9 / 0.25 swing condenser
Focusing: Coaxial coarse and find adjustment, fine division 0.001mm
Stage: Double layers mechanical stage, 185*142mm/75*55mm
Kohler illumination:

External illumination, aspherical collector, halogen lamp 6V/30W

External illumination, aspherical collector, halogen lamp 24V/100W

LED, 3W or 5W



Binocular Lab Biological Microscope WF10X/23mm Trinocular Kohler Illumination Microscope 0
