Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Warranty: | 1 Year | Drawtube: | Trinocular |
| Theory: | Biological Microscope | Lead-time: | 15-20 Work Days |
| Supply Ability: | 1000 PCS/Month | Magnification: | 40X-1000X |
| Eyepiece: | WF10X/20mm | Nosepiece: | 4-Position |
| Viewing Head: | 360 Rotatable | Stage: | Double Layers Mechanical Stage |
| Focusing: | Coaxial Coarse | Illumination: | 3W LED Lamp |
| High Light: | Biological lcd wireless microscope,Trinocular lcd wireless microscope,WF10X 20mm lcd digital microscope |
||

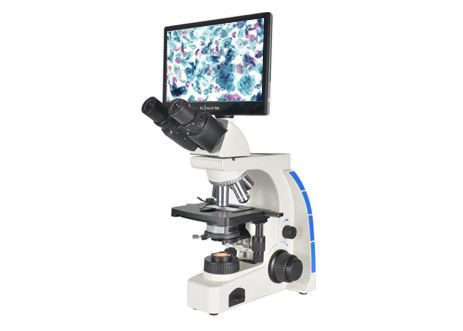

Professional Laboratory Biological Microscope Digital Microscope With LCD Screen
M12126 Professional Laboratory Biological Microscope Digital Microscope With LCD Screen. This series biological microscope is designed for the rigors of daily routine work in the demanding applications of universities, clinics, labs and many other life science or medical applications requiring quality optical performance. It provides good illumination for even the most demanding samples. Additional contrast methods like phase contrast, polarization and dark field and discussion/teaching devices ensure that this model will offer long term functionality to all user levels.
a student is observing a cell under the microscope
Features:
- Phase contrast, polarization and dark field can be supportable.
- Double layers mechanical stage, size 156*138mm, moving range 76*54mm.
- Infinity optical system.
- 11.6" LCD screen built-in 16M pixel camera.
| Item | Description / Value | M12126A | M12126B |
| Body: | Body (Choose the power cord please) | ● | ● |
| View head: | Binocular, Interpupillary distance 52-75mm | ● | |
| Binocular, Interpillary distance 48- 75mm | ○ | ||
| Trinocular, Interpuillary distance 52-75mm(100:0) | ○ | ||
| Trinocular. Interpillary distance 52-75mm(20:80) | ● | ||
| Trinocular, Interpupillary distance 48-75mm(20:80) | ○ | ||
| Trinocular, Interpupillary distance 52-75mm(50:50) | ○ | ||
| Eyepiece: | High type-point plan eyepiece WF10X/20mm | ●● | ●● |
| High eye point plan eyepiece WF10X/22mm | ○○ | ○○ | |
| Plan eyepiece WF16X/13mm | ○○ | ○○ | |
| High eye point plan eyepiece WF10X/20mm (pointer) | ○ | ○ | |
| High eye point plan eyepiece WF10X/22mm (pointer) | ○ | ○ | |
| Reticule Eyepiece Cross WF10X/20mm | ○ | ○ | |
| Objectives: | Infinity Economical Plan Achromatic Objective 4X | ○ | ○ |
| Infinity Economical Plan Achromatic Objective 10X | ○ | ○ | |
| Infinity Economical Plan Achromatic Objective 40X (S) | ○ | ○ | |
| Infinity Economical Plan Achromatic Objective 100X (S) (Oil) | ○ | ○ | |
| Infinity Plan Achromatic Objective 2X | ○ | ○ | |
| Infinity Plan Achromatic Objective 4X | ● | ● | |
| Infinity Plan Achromatic Objective 10X | ● | ● | |
| Infinity Plan Achromatic Objective 20X | ○ | ○ | |
| Infinity Plan Achromatic Objective 40X(S) | ● | ● | |
| Infinity Plan Achromatic Objective 60X(S) | ○ | ○ | |
| Infinity Plan Achromatic Objective 100X (S) (Oil) | ● | ● | |
| Stage: | Mechanical Stage, Right handed 156X138mm, movement range 76* 54mm | ● | ● |
| Mechanical Stage, Right handed 185X177mm, movement range 75*50mm | ○ | ○ | |
| Nosepiece: | Quadruple Nosepiece, inward facing | ● | ● |
| Quintuple Nosepiece, inward facing | ○ | ○ | |
| Condenser: | Abbe condenser NA1.25 | ● | ● |
| Dark Field Condenser (dry) | ○ | ○ | |
| Dark Field Condenser (oil) | ○ | ○ | |
| Illumination: | 6V 20W Halogen Lamps | ● | ● |
| 6V 30W Halogen Lamps | ○ | ○ | |
| 3W LED Electric Device (with Rechargeable Batteries) | ○ | ○ | |
| 3W LED Electric Device | ○ | ○ | |
| Bracket: | 05X C-Mount | ○ | |
| 1X C-Mount | ● | ||
| 0.25X C-Mount | ○ | ||
| C-Mount | ○ | ||
| Filter | Blue Filter (φ38) (LED Lamp without Filter) | ● | ● |
| Focusing: | Coaxial coarse and find adjustment, fine division 1μm | ● | ● |
| Camera: | 11.6" LCD screen built-in 16M pixel camera | ○ |
Note: ● means standard, ○ means optional
