Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M19120
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Zoom Stereo Microscope WF10X 50X Dissecting Microscope Magnification

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Stereo Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 8X-50X Eyepiece: WF10X
Objective: 0.8-5X Illumination: Bottom Light And Top Light
High Light:

50X Zoom Stereo Microscope

,

Binocular Zoom Stereo Microscope

,

WF10X dissecting microscope magnification



Trinocular Zoom Stereo Microscope WF10X 50X Dissecting Microscope Magnification

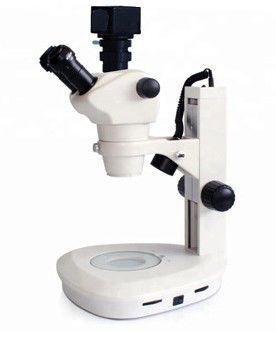

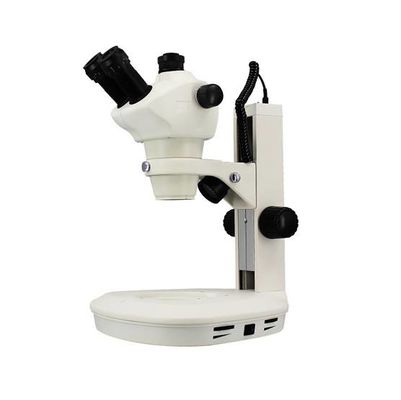

M19120 is designed to use camera, which can be used for various medical and industrial applications. With a simple structre, it’s more convenient for the users to observe and check sample status directly.



Specials:



- Camera and auxilary lens 0.5X, 2X are available.

- Suitable for medical and clinic, agroforestrial geology, pricise casting, especially for LED and PCB checking, chip detecting etc.

- Long working distance and large field range.



Model Specification/Value M19120
View tube Trinocular, 45° inclined
Eyepiece WF10× /22mm
Objective 0.8-5X continously zoom
Magnification 8-50X
Working distance Max 115mm
View field 4-27mm
Depth of field 15mm
Illumination

Reflected illumination: LED ring light.

Transmitted illumination: LED ring light.

Both illuminations are brightness adjustable.

Camera adapter Standard: 1X C-Mount
Optional: 0.5X C-Mount.
Power supply AC100V-240V, 50/60Hz.
Camera Optional
Auxiliary lens Optional: 0.5X, 2X

Note: ● means standard, ○ means optional
