Auto Focusing USB Optical Digital Microscope Toolmaker Monocular 1920x1080

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Auto Focusing USB Optical Digital Microscope Toolmaker Monocular 1920x1080

Auto Focusing USB Optical Digital Microscope Toolmaker Monocular 1920x1080
Auto Focusing USB Optical Digital Microscope Toolmaker Monocular 1920x1080

Large Image :  Auto Focusing USB Optical Digital Microscope Toolmaker Monocular 1920x1080

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20111
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Auto Focusing USB Optical Digital Microscope Toolmaker Monocular 1920x1080

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Monocular Theory: Digital Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 14X-150X Light Source: Adjustable LED Lights
Resolution: 1920*1080 Memory: USB Disk
Camera Port: HDMI Pixels: 2MP
Working Distance: Max 300mm Focusing: Auto-focusing
High Light:

1920x1080 Optical Digital Microscope

,

USB Optical Digital Microscope

,

Monocular toolmaker microscope

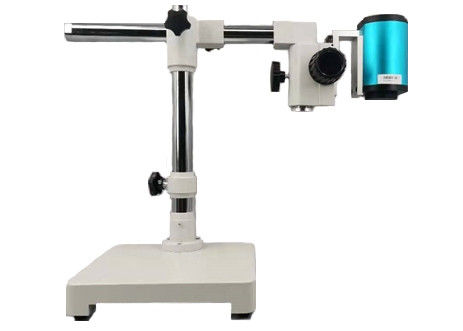

Auto-focusing Large View Field Long Working Distance Digital Microscope With Image Capture Function



M20111 Auto-focusing Large View Field Long Working Distance Digital Microscope With Image Capture Function The main function of M20111 is auto-focusing, which is more convenient for the observers to get clear image quickly without manual operation.



Features:



- Auto-focusing, no adjustment while changing zoom times.

- Boom stand digital microscope is competent for checking large size samples, high working distance to ensure more working space.

- High definition HDMI output.

- Take photo, USB flash disk memory and control by mouse (take photo, change zoom time).

- Optional boom stand. For sample in large size, boom stand is very important. User can change the position of lens and ensure the lens is on the center area to be checked.



Item Description / Value
Magnification: 14X-150X
Resolution/ Pixels: 1920*1080 / 2MP
View tube: Monocular
Field range: Up to 420*230mm
Working distance: Up to 300mm
Light Source: LED, brightness adjustable
