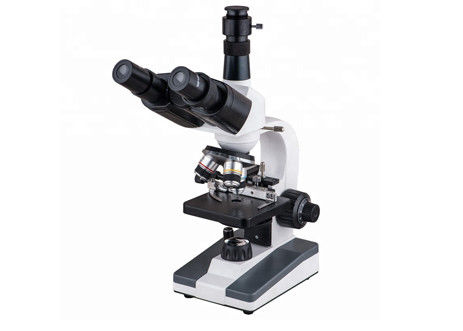

Trinocular Lab Biological Microscope CMOS Camera Eyepiece Lens Microscope PL16x

Trinocular Lab Biological Microscope CMOS Camera Eyepiece Lens Microscope PL16x
Trinocular Lab Biological Microscope CMOS Camera Eyepiece Lens Microscope PL16x

Large Image :  Trinocular Lab Biological Microscope CMOS Camera Eyepiece Lens Microscope PL16x

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12114
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Lab Biological Microscope CMOS Camera Eyepiece Lens Microscope PL16x

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Achromatic Optical System Magnification: 40X-1000X
Objectives: 4X, 10X, 40X,100X Eyepiece: WF PL10 X (20mm)/PL16x (15mm)
Nosepiece: Quadruple Nosepiece Focusing System: Tightness And Height
Illumination: 3W LED, Brightness Adjustable Application: Laboratory Hospital University
High Light:

Trinocular Lab Biological Microscope

,

PL16x Lab Biological Microscope

,

CMOS camera eyepiece lens microscope



Trinocular Structure Simplified Biological Optical Microscope



M12114 Trinocular Structure Simplified Biological Optical Microscope M12114 series is one kind of simple structure, achromatic optical system biological microscope, possessing the features of compact bulk, easy to carry and operate, sharpness image. It is widely used for school, beauty salon and animal hospital etc.



Features:



- Digital photoelectric imaging and optical system the integration of seamless connection.

- CCD/CMOS camera really built-in, accurate positioning.

- Original photoelectric imaging spectral structure, no need push rod, to ensure that any magnification can get full uniform illumination.

- Need to adjust the coarse micro, ensure the binoculars under observation and computer display completely in sync.

- Excellent image quality, the image sharpness colorless difference, clear image is flat and level.



Item Description / Value
Optical system: Achromatic optical system.
View tube:

Trinocular, Hinge trinocular, 30 ° Tilt, 60°rotating,

IPD adjustment: 55mm ~ 75mm,

Diopter adjustment: ± 5 diopters.

Eyepiece: WF PL10 × (Φ20mm)/PL16× (Φ15mm)
Objective:

Flat field achromatic objective: 4X school microscope, lab microscope, camera microscope, trinocular microscope

10X, 40X(spring), 100X/(spring, oil)

Nosepiece:

Standard: Four-position.

Optional: Five-position.

Stage:

Double layer mechanical stage.

Stage size: 210*140mm.

Moving range: 75mm ×50mm, Precision: 0.2mm

Focusing mechanism:

Tightness and height limitation of coarse regulation are adjustable.

Coarse regulation range: 22mm.

Fine adjustment accuracy: 0.002mm.

Illumination: 3W LED, the brightness is adjustable
Condenser: N.A.1.25, adjustable center, with field stop and aperture stop
