5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software

5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software
5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software 5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software

Large Image :  5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20118
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software

Description
Color: Black Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Monocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 14X-180X Lens: 0.7X-4.5X
Illumination: LED Ring Light Pixel: 5MP
High Light:

5MP 7 inch lcd digital usb microscope

,

7 inch lcd digital usb microscope

,

4.5X digital video microscope



5MP USB LCD Digital Microscope With Measurement Software Can Take Photo Record Video

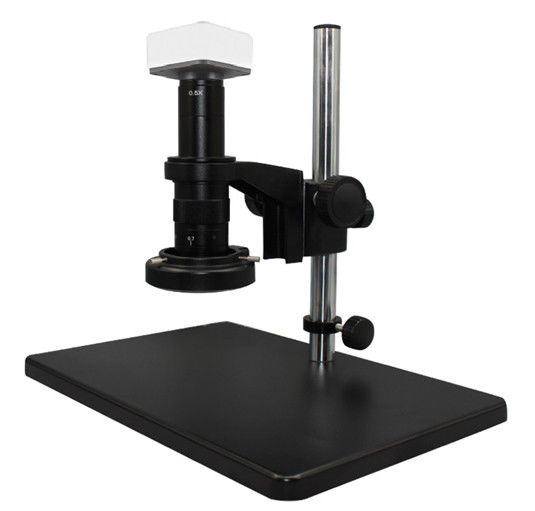

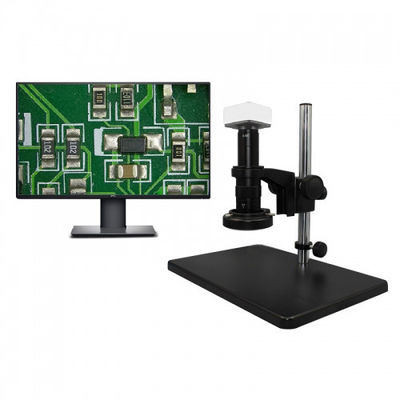

M20118 is a universal type video microscope with various applications in the industrial fields.



Features:



- It’s convenient to take photo and record with the aid of measurement software.

- User can set the Menu according to requirement.



Item Description / Value M20118
Magnification: 14X-180X
Lens: 0.7-4.5X
Resolution/Pixels: 5 mega pixels
Moving distance: 100mm
Camera port: USB2.0
Camera features: Image capture, video recording, measurement
Measurement soft:

For operation system under WIN10 (64bit).

Measure:

Circle: radius, circumference, squre; Distance from center of a circle to a line, to a point, to another center of a circle

Arc: radius, arc length, radian; Rectangle: length, width, square and perimeter; Polygon: primeter and square; Elipse: primeter and square; Length, angle; Distance from point to line, distance between 2 lines, etc.

Stage: 380*260mm
Illumination: High intensity LED ring light, brightness adjustable.
Camera: 5MP
  6.3MP
Auxiliary lens: 0.5X or 2X

Note: ● means standard, ○ means optional



5MP USB 7 Inch Lcd Digital Usb Microscope Video 4.5X Measurement Software 0
