Toolmarke Electronic Optical Digital Microscope 4.5X 7X Measuring

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

Toolmarke Electronic Optical Digital Microscope 4.5X 7X Measuring

Toolmarke Electronic Optical Digital Microscope 4.5X 7X Measuring
Toolmarke Electronic Optical Digital Microscope 4.5X 7X Measuring

Large Image :  Toolmarke Electronic Optical Digital Microscope 4.5X 7X Measuring

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Toolmarke Electronic Optical Digital Microscope 4.5X 7X Measuring

Description
Color: Black+White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Stereo Microscope
Magnification: 7X-45X Working Distance: 100mm, With Auxiliary Objectives 30~165mm
Zoom Lens: 0.7X-4.5X Zoom Ratio: 1:6.5
Magnification Ratio: 7X-45X, Up To 3.5X-180X Eyepiece: WF10X
High Light:

Toolmarke Optical Digital Microscope

,

7X Optical Digital Microscope

,

4.5X electronic digital microscope



Digital Electron Toolmarke Measuring Microscope

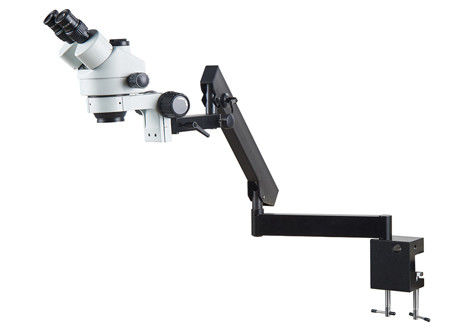

M20106 Digital Electron Toolmarke Measuring Microscope This product is a universal stereo microscope. Mainly through the universal bracket, the microscope can be changed in a wide range and large direction, so as to solve the inconvenience of ordinary microscopes due to insufficient working distance and narrow changing direction. Therefore, the universal stereo microscope has a wide range of use, which can be convenient. The realization of three-dimensional motion in space can produce an upright three-dimensional space image when observing an object, with a strong sense of three-dimensionality, clear and wide imaging, a long working distance, and continuous magnification viewing of the same object.



Features:



- This instrument has reliable performance, simple operation, convenient use and beautiful appearance, so it is widely used in textiles, metallurgy, chemicals, plastics, medicine, electronics, machinery, agriculture, forestry, animal husbandry, fishery, food, printing, higher education, archaeological research and many other fields.

- The Arculated arm, vertical post 400mm, horizontal moving 770mm, base size 98x80x116mm, max clamping size 50mm with C-clamp expand the scope of operation and observe the object in any direction.



Item Description / Value
Head: Trinocular Head, 45° Inclined, 360°Rotatable, ±5 Diopter Adjustable, Interpupillary Adjustment 54-75mm, Eyepiece Tube Adapter
Lens: 0.7X-4.5X
Working distance: 100mm, With Auxiliary Objectives 30~165mm
Eyepiece: WF10X /20mm
Zoom Lens: 0.7X-4.5X
Zoom Ratio: 1:6.5
Magnification Ratio: 7X-45X, Up To 3.5X-180X
Field Of View: 1~95.2mm
Stand: Swing Arm Boom Stand, Without Light Source
