7W 0.6X 100mm Trinocular Stereo Zoom Microscope For Jewelry Setting

7W 0.6X 100mm Trinocular Stereo Zoom Microscope For Jewelry Setting
7W 0.6X 100mm Trinocular Stereo Zoom Microscope For Jewelry Setting

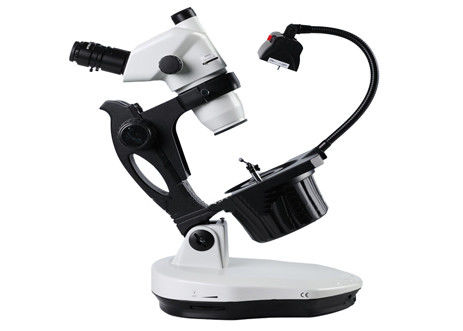

Large Image :  7W 0.6X 100mm Trinocular Stereo Zoom Microscope For Jewelry Setting

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M19115
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

7W 0.6X 100mm Trinocular Stereo Zoom Microscope For Jewelry Setting

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Stereo Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Zoom Range: 0.6-4.5X Working Distance: 100mm 100%
Upper Lighting: 7W Fluorescent Lamp Down Lighting: Halogen Lamp
High Light:

0.6X trinocular stereo zoom microscope

,

7W trinocular stereo zoom microscope

,

100mm microscope for jewelry setting



Professional Trinocular Zoom Stereo Jewelry Microscope



M19115 Professional Trinocular Zoom Stereo Jewelry Microscope The jewelry microscope, with Greenough optical system and special stand, fully meet the demands of various types of diamonds, crystals, gems and other jewelry.



Features:



- 0.67X-4.5X zoom lens, magnification fulfills the needs of Jewelry appearance observation and internal fine identification. Excellent optical system provides high definition, high contrast and high resolution images And with a large depth of field, the final imaging has a strong 3D effect

- It has professional jewelry microscope stand, together with the disk rotation, observation angle adjustment, body lifting and other functions. It can be adjusted according to the different habits and different samples.

- With fluorescent and halogen illumination, it can achieve parallel light, oblique light, transmitted light and other lighting methods to achieve bright held, dark field and polarized light observation. Thus you can analyze various components and characteristics of gem.



Item Description / Value
Head: Trinocular Head, Continuous zoom trinocular stereo microscope, space-time fan field 0.67x-4.5x. Working distance 100mm, 100% spectroscopy
Eyepiece:

High-eyepoint wide field plan eyepiece PL10X/22mm, diopter adjustable

High-eyepoint wide field plan eyepiece PL15X/16mm, diopter adjustable

High-eyepoint wide field plan eyepiece PL20X/12mm, diopter adjustable

Stand: (BFH) coarse adjustment system, 110mm, arm rotate 0~45°, two method of illuminator: dark-field and bright-field, iris diaphragm adjustable 44mm~3mm, 110~220V wide voltage, top light 7W fluorescence bulb, bottom light 6V/30W halogen bulb, adjustable brightness, 360°rotatable base; gem clamp; Inner hexagon spanner; foam and paper carton.
Upper light:

7W fluorescent lamp

1W single high power LED, white, brightness adjustable

Bottom light: 6V30W Halogen lamp, philips5761, brightness adjustable
Gem clamp: Wire clamp, Flat clamp
