40-1600X Biological Lcd Screen Microscope With Video Output Bright Field

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

40-1600X Biological Lcd Screen Microscope With Video Output Bright Field

40-1600X Biological Lcd Screen Microscope With Video Output Bright Field
40-1600X Biological Lcd Screen Microscope With Video Output Bright Field 40-1600X Biological Lcd Screen Microscope With Video Output Bright Field

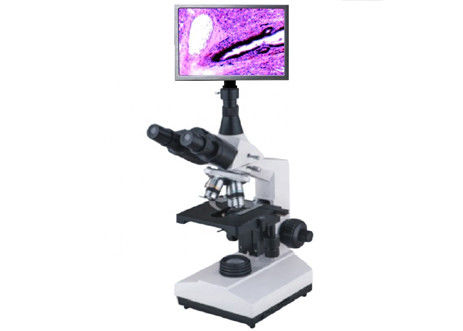

Large Image :  40-1600X Biological Lcd Screen Microscope With Video Output Bright Field

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12108
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

40-1600X Biological Lcd Screen Microscope With Video Output Bright Field

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Binocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Application: Hospital, Education & Research Eyepiece: WF10X Or 16X
Objective: 4X/10X/40X/100X Magnification: 40X1600X
Illumination: 6V/20W Halogen Lamp Or LED Lamp Optical System: 160mm Plan Achromatic Optical System
High Light:

Biological lcd screen microscope

,

1600X lcd screen microscope

,

40X Bright Field microscope with video output



LCD Screen Biological Microscope 40-1600X Bright Field



M12108, brand new ergonomic design, stable and reliable system structure, easier and more comfortable operation are suitable for various working environments.



Features:



- Well equipped with LCD Screen, easy use for basic research and teaching experiments.

- Halogen lamp or LCD cold light, brightness adjustable.



Model Specification/Value M12108A M12108B
Optical system Achromatic correction system.
View tube

Binocular tube, 30° inclined, 360° rotating.

Adjustable ocular diopter, IPD adjustment: 55-75mm.



Trinocular tube, 30° inclined, 360° rotating.

Adjustable ocular diopter, IPD adjustment: 55-75mm.


Magnification 40-1000x, Max 1600x.
Eyepiece WF10X/18mm.
  WF16X
Nosepiece 4-position/quadruple revolving nosepiece.
Objective

Achromatic objective lens:

4X/ 0.1, 10X/0.25, 40X/0.65(spr.), 100X/1.25(spr., oil).

Focusing Coaxial coarse & fine adjusting knobs on both sides. Coaxial adjustment: 25 mm. Increments 0.002 mm.
Illumination Transmission illumination system, high light LED lamp, intensity adjustable.
Condenser Abbe condenser with iris diaphragm, NA1.25.
Stage

Fixed Mechanical double layer, stage size: 115x120mm.

X-Y moving range: 60×30mm, Moving precision: 0.2mm.

2 clicks for fix samples.

LCD 13 inch HD LCD monitor.
Accessories Dust cover, manual.
Power supply AC 100-240V, 50/60Hz.

Note: ● means standard, ○ means optional



M12108A





40-1600X Biological Lcd Screen Microscope With Video Output Bright Field 0
