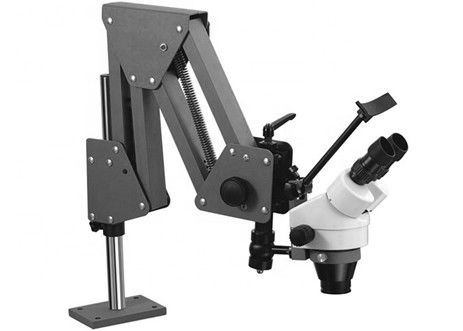

Stereo Diamond Setting Microscope 45X LED Illumination Jewelers Bench Microscope

Stereo Diamond Setting Microscope 45X LED Illumination Jewelers Bench Microscope
Stereo Diamond Setting Microscope 45X LED Illumination Jewelers Bench Microscope

Large Image :  Stereo Diamond Setting Microscope 45X LED Illumination Jewelers Bench Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M19119
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Stereo Diamond Setting Microscope 45X LED Illumination Jewelers Bench Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Stereo Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 7X-450X Eyepiece: WF10X (20mm), WF20X (18mm), WF10X(20mm) With Scale
Objective: 0.7-4.5X Illumination: LED
High Light:

45X diamond setting microscope

,

Stereo diamond setting microscope

,

LED jewelers bench microscope



7X-45X Jewelry microscope stereo microscope for Jewelry making



M19119 7X-45X Jewelry microscope stereo microscope for Jewelry making The magnification of M19119 can be adjusted continuously. It has a long working distance and large field range. It is fit for medical and clinic, agriculture and forestry geology, precise casting, especially for LED checking, PCB checking, clad layer checking and chip detecting.



Features:



- 7-45X articulating arm Jewelry microscope for Jewelry making

- Long working distance and large field range are specially designed to fit for various applications.



Item Description / Value
View tube: Binocular, Hinge trinocular, 45 ° Tilt,
Zoom ratio: 1:6.4
Eyepiece WF10× (Φ20mm)
Objective: 0.7-4.5X
Magnification: 7-45X
Working Distance: 100mm
Depth of field: 15mm
Light source: Upper LED
Stage baseplate: Φ95mm glass working board or black and white working board
Photographic device interface: 1XCTV, C type interface
Stage size: 200X255cm
Standard configuration: Eyepiece: 10X, Objective: .0.7-4.5X, CTV:1X, light source
