Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem

Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem
Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem

Large Image :  Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M18105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Jewelry Identification Dark Field Microscope With Camera Gemological Polarizing Gem

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Stereo Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 7X-45X Eyepiece: WF10X/22mm
Objective: 0.7-4.5X Viewing Head: Trinocular Head
Illumination: Bottom Dark Field Light And Gooseneck LED Application: Jewelry Identification
Working Distance: 90mm Camera: Optional
High Light:

Jewelry Identification Dark Field Microscope

,

Polarizing Gem Dark Field Microscope

,

Gooseneck LED gemological microscope with camera

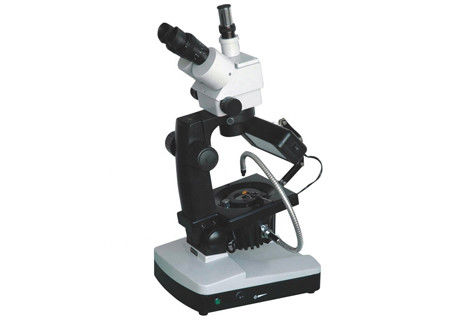

Dark Field And Polarizing Gem Microscope For Jewelry Identification With Gooseneck LED



M18105 Dark Field And Polarizing Gem Microscope For Jewelry Identification With Gooseneck LED It is a research microscope with dark field and polarizing. It can be applied to different industrial fields, special for jewelry identification usage.



Features:



- Gem Microscope was designed for gem identification.

- It has a dark field bottom light and a flexional gooseneck LED light. A wire clip can reduce the shadow and make multi-angle observing possible.

- With a polarizer the inside structure can be seen.



Item Description / Value
Contrast method: Bright field, polarizing, Dark field
Magnification: Standard: 7-45X
View tube: Binocular, or trinocular, 45 ° inclined
Eyepiece: Standard: WF10X(Φ22mm)
Objective: 0.7-4.5X
Working distance: 95mm
Illumination: Bottom dark field light and gooseneck LED
Auxiliary objective (Optional):

0.75X, working distance 105mm;

1.5X, workign distance 47mm;

2X, workign distance 33mm.

Stage baseplate: With gem holder
Camera adapter: 1X C-mount
Camera: Optional.
