Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Biological Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Eyepiece: | WF10X/18mm | Objective: | PL4X, PL10X, PL40X, PL100X |
| Application: | Education, Hospital, Clinic, Research Institution | Tilt: | 30 Degree Inclined |
| Focusing: | Coarse And Fine Adjustment | Light Source: | 6V 20W Lamp |
| High Light: | 6V 20W dark field fluorescence microscopy,Criminal dark field fluorescence microscopy,WF10X dark background microscope |
||

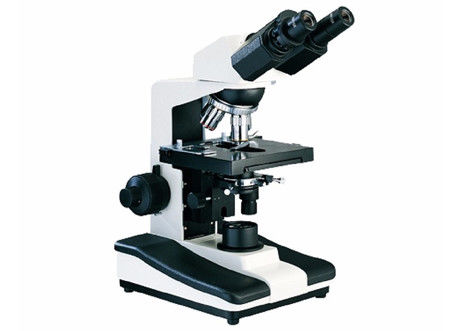

Binocular High Quality Lab Education Dark Field Biological Microscope
M18106 Binocular High Quality Lab Education Dark Field Biological Microscope M18106 has clear imaging, broad vision, which can be widely used in biology, medicine, industry, agriculture and other fields.
Features:
- Flat field achromatic system. Compound light microscope with dark field (dry dark field or oil dark field) condenser.
- View tube: Binocular/Trinocular.
- Fit for research lab, education, industrial lab and medical lab etc.
| Item | Description / Value |
| Optical system: | Plan achromatic correction system |
| View tube: |
Binocular/Trinocular, 30° inclined, 360°rotating IPD adjustment: 54mm ~ 75mm Diopter adjustment: ± 5 diopters Splitting ratio: 100: 0 |
| Eyepiece: | Wide field PL10 × (Φ18mm) |
| Objective: | Plan achromatic objective: 4X/0.1, 10X/0.25, 40X/0.65 (spr), 100X (spr.,oil) |
| Nosepiece: | Four-hole converter |
| Stage: | Stage size:160×140mm., moving range: 75mm ×50mm , Precision: 0.1mm |
| Focusing mechanism: |
Coaxial coarse and fine focusing system. Focusing stopper for protecting the lens and specimen. Tightness and height limitation of coarse regulation are adjustable. Fine adjustment accuracy :0.002mm. |
| Light source: | Transmission illumination system, 6V/20W halogen lamp, brightness could be adjusted. |
| Condenser: | Dark field condenser |
| Camera adapter: | 0.5X or 1X C-mount. |
