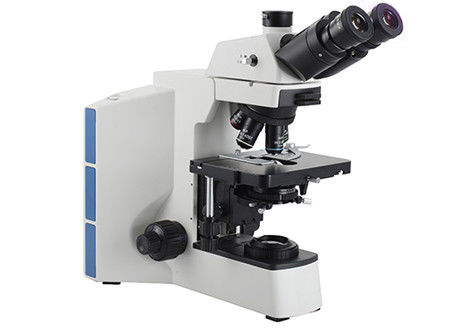

Capillary PL10X/18mm 100X Dark Field Microscope 180 X 155mm Mechanical Stage

Capillary PL10X/18mm 100X Dark Field Microscope 180 X 155mm Mechanical Stage
Capillary PL10X/18mm 100X Dark Field Microscope 180 X 155mm Mechanical Stage

Large Image :  Capillary PL10X/18mm 100X Dark Field Microscope 180 X 155mm Mechanical Stage

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M18103
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Capillary PL10X/18mm 100X Dark Field Microscope 180 X 155mm Mechanical Stage

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Objective: 5X, 10X, 20X, 50X, 100X Eyepiece: PL10X/18mm, WF15X/13mm, WF20X/10mm Optional
Nosepiece: Quadruple Nosepiece Or Quintuple Nosepiece Mechanical Stage Size: 180*155mm
High Light:

PL10X/18mm Dark Field Microscope

,

100X Dark Field Microscope

,

180 x 155mm dark ground microscope



Capillary Dark-field Dissection Relife Biological Microscope For Lab And School



M18103 Capillary Darkfield Dissection Relife Biological Microscope For Lab And School Based on infinity chromatic aberration correction optical system, with the newly upgraded Kola lighting system, the product can make clear and bright microscopic images at every magnification.



Features:



- Brand new ergonomic design, stable and reliable system structure, easier and more comfortable operation, suitable for various working environments.

- The building block type function combination design can add various functional modules such as fluorescence, phase contrast, polarization, dark field, etc. on the basis of bright field.

- It is widely used in various fields such as clinical diagnosis, teaching experiment, pathology detection, etc.



Item Description / Value M18103
Head: 30° inclined gemel trinocular head, splitting ratio R:T=50:50 or R:T=0:100; 360° rotatable; inter-pupillary adjustable distance: 54-75mm; diopter +/-5 adjustable
Eyepiece: High eye-point wide field plan eyepiece PL 10x22mm, PL 15x16mm
Objective: Infinity plan achromatic / phase contrast /semi-apochromatic fluorescence objectives
Nosepiece: Revolving quadruple nosepiece/quintuple nosepiece
Boby: Coaxial focus system with upper limited and tension adjustment: coarse range: 30mm: fine precision: 0.002mm; focus height adjustable
Stage:

175x145mm double layer mechanical stage, rotatable; anti-corrosive and anti-friction; moving range: 76x50mm, precision : 0.1 mm

187xl 67mm double layer mechanical stage, moving range: 80x55mm, precision: 0.1 mm

Condenser: N.A.0.9 swing-out type achromatic condenser; N.A.1.2/0.22 swing-out type achromatic condenser; N.A. 1.25 quintuple phase contrast condenser; N.A.0.9 dry dark field condenser; N.A.1.25 oil dark field condenser
Reflected fluorescence illumination system:

XYRFLP reflected fluorescence Koehler illumination with alterable field diaphragm and aperture diaphragm (center adjustable)

XYLH 100 HG mercury lamp house with viewfinder; the center and focal length of viewfinder &filament are adjustable

U2-RFLT100 digital power control box of mercury lamp,w1de voltage:100-240VAC

U2-RFLT100 digital power control box of mercury lamp,w1de voltage:100-240VAC

Imported OSRAM 100W DC mercury bulb, disc fluorescence filers: UVNB/G;30ND25-RFLP/30ND50-RFLP attenuation plate

Transmitted illumination system: Wide voltage: 100-240V, built-in transmitted Koehler illumination; 6V/30W halogen, pre-centered, intensity adjustable
Polarizing kit: Analyzer 360° rotatable; polarizer and analyzer can be out of light path
Filter: Yellow, green, blue, neutral filter
Light splitting device: R:T = 70:30 or 100:0, special 1 x CTV
Camera adapter: 0.5xCTV, 0.67xCTV, 1 xCTV
Size of the package: 64X34X41 cm
Gross weight: 7.80kg

Note: ● means standard, ○ means optional
