Simplified Lab Biological Microscope WF16X 15mm Trinocular Structure Of Compound Microscope

Simplified Lab Biological Microscope WF16X 15mm Trinocular Structure Of Compound Microscope
Simplified Lab Biological Microscope WF16X 15mm Trinocular Structure Of Compound Microscope

Large Image :  Simplified Lab Biological Microscope WF16X 15mm Trinocular Structure Of Compound Microscope

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12112
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Simplified Lab Biological Microscope WF16X 15mm Trinocular Structure Of Compound Microscope

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Binocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Magnification: 40X-1600X Eyepiece: WF10X/20mm, WF16X/15mm
Application: Medical, Education Illumination: LED Illumination
Objective: 4X/10X/40X/100X Light Source: LED Cold Source
High Light:

Simplified Lab Biological Microscope

,

WF16X 15mm Lab Biological Microscope

,

Trinocular structure of compound microscope



Structure Simplified Biological Microscope

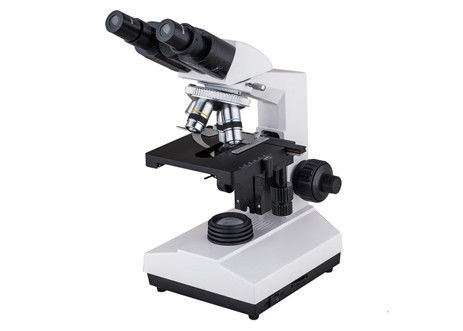

M12112 Structure Simplified Biological Microscope This series is kind of simple structure, achromatic optic system biological microscope, possessing the features of compact bulk, easy to carry and operate, sharp ness image. It’s widely used for school, beauty salon and animal hospital etc.



Features:



- Ergonomics designed rigid frame with handle for carry.

- All metal material with cover, anti-fungi and anti-bacteria.

- Competent for research lab and school lab.

- Optional Digital Camera for connect to computer or monitor.

- Optional Rechargeable battery.



Item Description / Value
Theory: Biological microscope
Optical system: Achromatic optical system
View tube:

Trinocular, Hinge trinocular, 30 ° Tilt, 360°rotating

IPD adjustment: 55mm ~ 75mm, Diopter adjustment: ± 5 diopters

Eyepiece: WF PL10 × (Φ20mm)/PL16× (Φ15mm)
Objective: Flat field achromatic objective: 4X, 10X, 40X(spring), 100X/(spring, oil)
Nosepiece: Four-hole converter
Stage: Double layer mechanical stage. Stage size:140×132mm, moving range: 70mm ×50mm
Focusing mechanism:

Tightness and height limitation of coarse regulation are adjustable.

Coarse regulation range: 22mm

Fine adjustment accuracy :0.002mm.

Light source: 1W LED, the brightness is adjustable
Condenser: N.A.1.25, adjustable center, with field stop and aperture stop
