Trinocular Plan Phase Contrast Microscope Student With Mechanical Stage Achromatic

Trinocular Plan Phase Contrast Microscope Student With Mechanical Stage Achromatic
Trinocular Plan Phase Contrast Microscope Student With Mechanical Stage Achromatic

Large Image :  Trinocular Plan Phase Contrast Microscope Student With Mechanical Stage Achromatic

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M12113
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Trinocular Plan Phase Contrast Microscope Student With Mechanical Stage Achromatic

Description
Color: White Customization: OEM, ODM
Packing: 1 PC/Carton Warranty: 1 Year
Drawtube: Trinocular Theory: Biological Microscope
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Optical System: Plan Achromatic System Eyepiece: WF10X/18mm
Nosepiece: Quadruple Nosepiece Objective: 4X/10X/20X/100X
Stage: 135 X125mm Focusing: Coaxial Coarse And Fine Focusing
Illumination: 6V/20W Halogen Lamp Or LED Lamp Application: Laboratory Hospital University
High Light:

Trinocular phase contrast microscope

,

Achromatic phase contrast microscope

,

135 x125mm student microscope with mechanical stage



Trinocular Plan Achromatic Biological Microscope

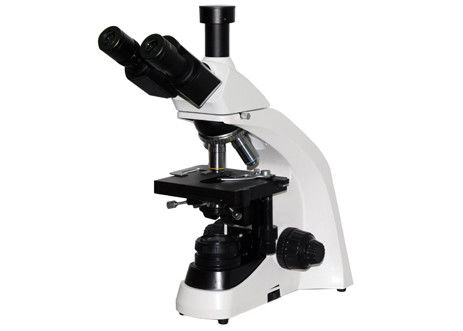

M12113 Trinocular Plan Achromatic Biological Microscope M12113 is a plan achromatic type biological microscope, which is widely used in various industrial fields, hospitals and universities.



Features:



- It can add dark field, phase contrast kits.

- LED or halogen lamp to choose.



Item Description / Value
Optical system: Plan achromatic optical system.
View tube: Trinocular/Binocular, 30 ° inclined, 360°rotating. IPD adjustment: 48mm ~ 75mm, Diopter adjustment: ± 5. diopters
Eyepiece: High eye level wide field WF10 × (Φ18mm).
Objective: Plan achromatic objective: 4X/0.1, 10X/0.25, 20X/0.65X (spring), 100X/1.25(spring, oil).
Nosepiece: Four-hole converter
Stage:

Double layer stage size:135 × 125mm.

Moving range: 75mm ×35mm, Precision: 0.1mm.

Double slide holder, with graduation reading up to 0.1mm.

Focusing mechanism:

Coaxial coarse and fine focusing system. Knobs on both sides.

Tension adjustment of coarse regulation knob.

Fine adjustable accuracy: 0.002mm.

Focusing stopper for protecting the lens and specimen.

Illumination:

Transmission illumination system.

Brightness adjustable.

6V/20W halogen lamp or LED lamp.

Condenser: Abbe NA 1.25 condenser with aperture iris diaphragm.
Camera adapter: For trinocular: 0.5X or 1X C-mount.
Digital camera: Optional.



Trinocular Plan Phase Contrast Microscope Student With Mechanical Stage Achromatic 0
