Product Details:
|
Color: | White | Customization: | OEM, ODM |
---|---|---|---|
Packing: | 1 PC/Carton | Warranty: | 1 Year |
Drawtube: | Binocular | Theory: | Biological Microscope |
Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
Magnification: | 100X-1000X | Eyepiece: | WF PL10 X (18mm) |
Objective: | 10X/40X/100X | Light Source: | White LED |
High Light: | 10X 100X Student Biological Microscope,WF PL10X Student Biological Microscope,18mm Binocular student compound microscope |

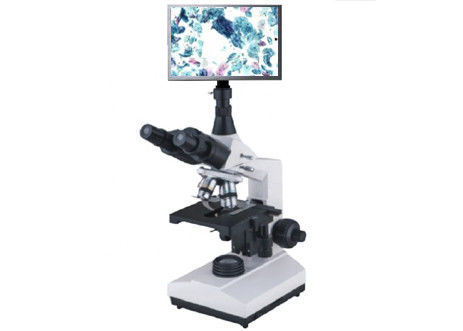

Economical Binocular Student Microscope School Lab Biological Microscope Education Microscope
M11106 Economical Binocular Student Microscope School Lab Biological Microscope Education Microscope M11106 is a biological microscope suitable to observe many different kinds of objects, for example the hair. It is an economical version fit for school education.
Features:
- Monocular Tube, simple structure.
- 10X, 40X, 100X achromatic objectives are enough for basic observation use.
- White LED light.
Item | Description / Value |
Optical system: | Flat field achromatic correction system |
View tube: | Monocular 45 Degree Inclined Head with Locked-in Eyepiece |
Eyepiece: | Wide field PL10 X ,16X |
Objective: | Optional:Flat field achromatic objective lens: 4X, 10X, 40X(spr), 100X Oil immersion |
Nosepiece: | single lens with disc diaphragm |
Stage: | Double layer stage size:90*90mm, moving range: 50mm ×50mm , Precision: 0.2mm |
Focusing mechanism: | Coaxial coarse & fine knobs on both sides. |
Light source: | Long life LED lamp |
Camera: | Optional |
