Product Details:
|
| Color: | White | Customization: | OEM, ODM |
|---|---|---|---|
| Packing: | 1 PC/Carton | Warranty: | 1 Year |
| Drawtube: | Trinocular | Theory: | Biological Microscope |
| Lead-time: | 15-20 Work Days | Supply Ability: | 1000 PCS/Month |
| Eyepiece: | WF10X | Illumination System: | Transmission And Reflection LED And Halogen Lamp |
| High Light: | LCD microscopy biology discussion,400X microscopy biology discussion,WF10X bright field microscope biology discussion |
||

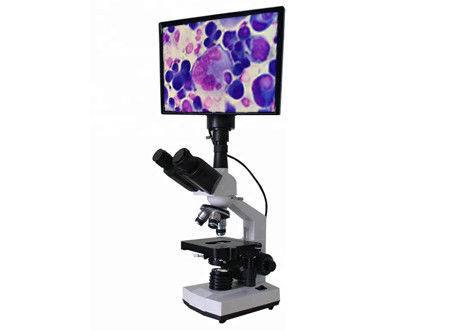

LCD Microscope Biological Lab Microscope
M12117 is mainly designed for student experiment, such as hospital school and research institution etc.
Features:
- Simple structure and easy to observe.
- LCD panel on the front of the microscope can display the using status of the microscope.
- Competent for hospital schools and research institutions.
| Model | Specification/Value | M12117 |
| Magnification: | 40X-400X | ● |
| View tube: |
Trinocular, 30° inclined, 360°rotated. With LCD monitor and built-in camera. |
● |
| Eyepiece: | WF10X / 18mm. | ● |
| Objective: | Plan Achromatic objective 4X/0.1, 10X/0.25, 40X/0.65 Spr. | ● |
| Optional: 100X/1.25 Spr. Oil | ○ | |
| Nosepiece: | 3-position nosepiece, revolver with rotation on ball bearings. | ● |
| Stage: | Size: 110x120mm, move range: 30-60mm | ● |
| Focusing: |
Coaxial coarse and fine focusing. Movement by roller guider (Roller and pinion). Rubber grip around fine and coarse adjust knob. |
● |
| Illumination: | LED cold light, 1W, brightness adjustable. | ● |
| LCD display: | 9 inch HD LCD monitor. | ● |
| Condenser: | Removable Abbe condenser, NA1.25 with aperture iris diaphragm. | ● |
| Package: | Portable box. | ● |
Note: ● means standard, ○ means optional

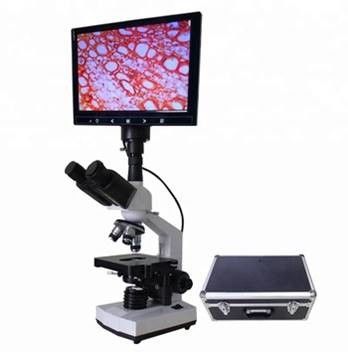

Product with box
