13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP

13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP
13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP

Large Image :  13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21105
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP

Description
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Color: Black
Resolution: 2592*1944 Pixels: 5M
Frame Rate: 10fps Interface: HDMI And USB2.0
Sensor: 1/2'' Color CMOS Memory: USB Disk
Screen Size: 13'' LCD Screen Application: Biological And Metallurgical Microscopes
High Light:

HDMI Microscope Accessories

,

5MP Microscope Accessories

,

13 inch lcd screen

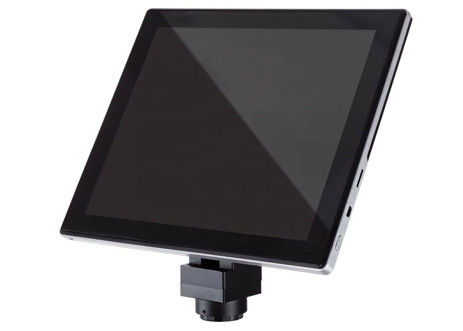

HDMI & USB Output 13 Inch LCD Screen with Built-in 5MP Mmicroscope Camera



M21105 is a universal industrial LCD screens for both biological and metallurgical microscopes, 13 inch LCD screen with built-in 5MP microscope camera.



Features:



- Universal industrial LCD screens for both biological and metallurgical microscopes.

- 13 inch LCD screen with built-in 5MP microscope camera.

- Long life span.



Item Description / Value M21105
LCD screen Tablet
Operation system: Windows 10 64-bit
Language: Multilanguages already installed
LCD monitor: 13 inch HD LCD monitor
CPU: Intel® Atom™ , Quad core, 1.92 GHz
Resolution: 1920x1080, 16/9 Full HD
Storage: Hdd or USB flash disk
Input/output port: USB2.0, HDMI, WIFI
Wifi: 2.4GHz/5GHz WIFI, 802.11a/b/g/n/ac
Control: By mouse
Power supply: Power Adapter, input AC200-240V, 50/60Hz. Output: 2V/2A
Software:

Win10 system, with Live Camera view software.

Continuous auto exposure, image size, image capture, compressed video capture, measurement.

Continuous control of Brightness, gain, exposur time, colors, color enhancement.

LCD screen camera
Resolution: 5MP
Signal output: USB2.0
Image format: 16:9
Full image size: Max image 2592*1944, video 1920*1080P
Pixel size: 2.4um*2.4um
Frame rate full resolution: 10fps
Frame rate other resolutions: 15 fps (1920x1080), 30 fps (640x480)
Sensitivity: 0.5 V/Lux-second (550 nm)
Signal / noise ratio: 45 dB
Dynamic range: 70 dB
Max exposure time: 15s
ADC conversion: 12 Bit
Color depth: 8 Bit
On camera IR filter: 650nm
Automatic white balance: Auto/Manual
Automatic gain control: Auto/Manual
Automatic back light control: Auto/Manual
Exposure control: Auto/Manual

Note: ● means standard, ○ means optional







13 Inch Lcd Screen HDMI Microscope Accessories Built-In 5MP 0
