Measurement Microscope 16MP 12 Inch Touch Pad Screen 4608x3456 Usb Lcd Screen

Measurement Microscope 16MP 12 Inch Touch Pad Screen 4608x3456 Usb Lcd Screen
Measurement Microscope 16MP 12 Inch Touch Pad Screen 4608x3456 Usb Lcd Screen

Large Image :  Measurement Microscope 16MP 12 Inch Touch Pad Screen 4608x3456 Usb Lcd Screen

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21106
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Measurement Microscope 16MP 12 Inch Touch Pad Screen 4608x3456 Usb Lcd Screen

Description
Customization: OEM, ODM Packing: 1 PC/Carton
Warranty: 1 Year Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Color: Black
Resolution: 4608*3456 Pixels: 16 Million Pixels
Frame Rate: 60fps Interface: HDMI And USB
Sensor: 1/2'' Color CMOS Memory: USB Disk
Screen Size: 13 Inch Touch Pad Application: Biological And Metallurgical Microscopes
High Light:

16MP 12 Inch touch pad screen

,

Measurement Microscope touch pad screen

,

4608x3456 usb lcd screen

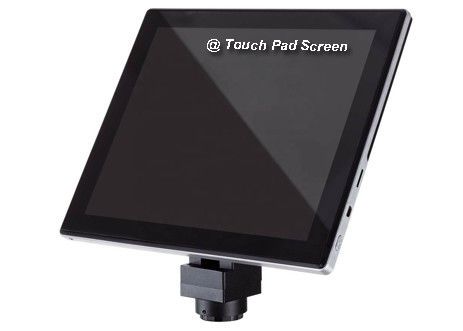

12 Inch Touch Pad Screen With Built-in 16MP Measurement Microscope Camera Support Extra LCD Screen



M21106 12 Inch Touch Pad Screen With Built-in 16MP Measurement Microscope Camera Support Extra LCD Screen. M21106 is a universal industrial touch pad screens for both biological and metallurgical microscopes, 12 inch touch pad screen with built-in 16MP microscope camera, supporting extra LCD screen.



Features:



- Universal industrial touch pad screens for both biological and metallurgical microscopes.

- 12 inch touch pad screen with built-in 16MP microscope camera.

- Support extra LCD screen.

- Long life span.



Item Description / Value
Operation system: Win10 64-bit
Language: Multi-languages already installed
Screen size: 12 inch HD monitor, touch pad screen
CPU: Intel® Atom™ , Quad core, 1.92 GHz
Resolution: 1920x1080, image format is 16/9 Full HD
Frame rate: Max: 60FPS
Memory: USB flash disk
Input/output ports:

USB2.0, HDMI, Bluetooth 4.0,

WIFI, 2.4GHz/5GHz, 802.11a/b/g/n/ac

Control: By mouse and by touching.
Power supply:

Power adapter, input AC200-240V, 50/60Hz.

Output: 2V/2A

Software:

Vision Lite (full view function is also included for a Live Camera view) Continuous auto exposure, image size, image capture, compressed video capture, measurement.

Continuous control of Brightness, gain, exposur time, colors, color enhancement.

Digital camera resolution: 16MP
Sensor: 1/2” CMOS
Full Image size: Max image 4608*3456, video 1920*1080P
Pixel size: 1.335um*1.335um
Frame rate:

full resolution,10fps

other resolutions,15 fps (1920x1080), 30 fps (640x480)

Sensitivity: 0.5 V/Lux-second (550 nm)
Signal / noise ratio: 45 dB
Dynamic range: 70 dB
Max Exposure time: 15s
ADC conversion: 12 Bit
Color Depth: 8 Bit
On camera IR Filter: 650nm
White Balance: Auto/Manual
Gain Control: Auto/Manual
Back light control: Auto/Manual
Exposure control: Auto/Manual



Measurement Microscope 16MP 12 Inch Touch Pad Screen 4608x3456 Usb Lcd Screen 0
