HDMI Output 2MP Digital Microscope Camera 1080P Microscope Accessories

Certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
China Phidix Motion Controls (Shanghai) Co., Ltd. certification
I'm Online Chat Now

HDMI Output 2MP Digital Microscope Camera 1080P Microscope Accessories

HDMI Output 2MP Digital Microscope Camera 1080P Microscope Accessories
HDMI Output 2MP Digital Microscope Camera 1080P Microscope Accessories

Large Image :  HDMI Output 2MP Digital Microscope Camera 1080P Microscope Accessories

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M21108
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

HDMI Output 2MP Digital Microscope Camera 1080P Microscope Accessories

Description
Customization: OEM, ODM Warranty: 1 Year
Lead-time: 15-20 Work Days Supply Ability: 1000 PCS/Month
Color: Black Pixels: 2MP
Output Port: HDMI Resolution: Max: 1920*1080
Frame Rate: Max: 45FPS Application: Biological And Metallurgical Microscopes
High Light:

HDMI Output Microscope Accessories

,

1080P Microscope Accessories

,

2MP digital microscope camera



HDMI-output Measurement Microscope Camera 1080P

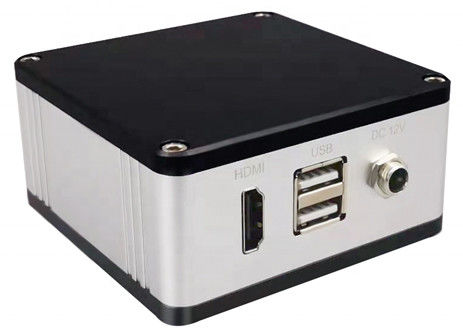

M21108 HDMI-output Measurement Microscope Camera 1080P. M21108 is a universal industrial HDMI-output camera for both biological and metallurgical microscopes applied to high precision measurement.



Features:



- Universal industrial HDMI-output camera for both biological and metallurgical microscopes.

- Fit for high precision measurement.

- Long life span.



Item Description / Value
Sensor: CMOS 1/2"
Pixel: 2MP
Resolution: Max: 1920*1080
Frame rate: Max: 45FPS
Output port: HDMI
Scan model: Line by line
Color: RGB adjustable separately
USB port: 2 USB(2.0) ports for mouse and USB flash card
Memory: USB flash disk 256M~32G
TV-adapter: C-mount
Control: Remote control OSD, adjustable
Exposure: Automatic /Manual exposure
White balance: One touch automatic white balance
Function: Cross line, taking photo, recording a video, one screen comparison, text, scanning for bar code and QR code, measurement.
Power: DC 12V
Measurement:

Length,

distance from point to line,

distance between 2 lines,

diameter and radius of circle,

center of a circle to a line,

center of a circle to a point,

length of an arc,

circumference of a circle,

angle,

radian,

distance of centers of circles,

rectangle square and perimeter,

perimeter and square of eclipse etc.

Language: Multi-languages
Packaging Size: 58*58*36.4mm
Working condition: Temperature: 0°- 80°, Humidity: 20%~80%
