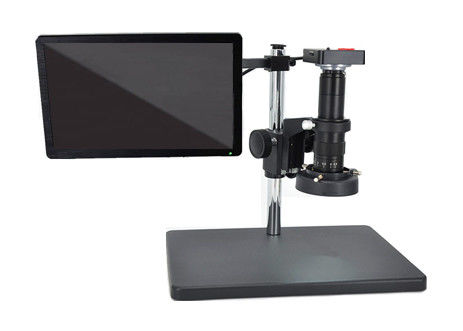

Camera Optical Digital Microscope Measuring PCB Soldering 10X-180X C-Mount Lens

Camera Optical Digital Microscope Measuring PCB Soldering 10X-180X C-Mount Lens
Camera Optical Digital Microscope Measuring PCB Soldering 10X-180X C-Mount Lens

Large Image :  Camera Optical Digital Microscope Measuring PCB Soldering 10X-180X C-Mount Lens

Product Details:
Place of Origin: China
Brand Name: Phidix
Certification: IATF16949,CE
Model Number: M20120
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: 1 PC/Carton
Delivery Time: 15-20 Work Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 1000 PCS/Month

Camera Optical Digital Microscope Measuring PCB Soldering 10X-180X C-Mount Lens

Description
Color: Black Customization: OEM, ODM
Warranty: 1 Year Drawtube: Monocular
Theory: Digital Microscope Lead-time: 15-20 Work Days
Supply Ability: 1000 PCS/Month Magnification: 10X-180X
Light Source: 52 LED Ring Lights Lens: 0.7X-4.5X
CCD Camera: 1/2.3 Inch Panasonic 21 Megapixel CMOS Sensor Screen Size: 10”
High Light:

10X-180X Optical Digital Microscope

,

Camera Optical Digital Microscope

,

PCB digital measuring microscope



10X-180X Digital Industry Video Microscope With Camera C-Mount Lens For Phone PCB Soldering



M20120 10X-180X Digital Industry Video Microscope With Camera C-Mount Lens For Phone PCB Soldering. M20120 is the digital version specially designed for phone PCB soldering application.



Features:



- 21MP HD microscope video camera high definition USB dual output.

- 10X-180X adjustable magnification zoom C-mount lens.

- 52 LED ring light.

- Large bracket and 10" screen.



Item Description / Value
Magnification: 10X-180X (Max: 500X)
Image sensor: Panasonic original 21 million pixel CMOS Sensor
Photosensitive Size: 1/2.3 inch. a larger field of view than the usual 1/3
Output interface: High definition, USB (Optional), TF Card
Photo output: 21 Mega Pixel, 21 million pixels
Video output: 2K@30 frame, 1080p@60 frame
Resolution: 1920*1080P, 60 FPS
TF card storage capacity: up to 64GB
Exposure: Automatic / manual
White balance: automatic / manual, RGB individually adjustable
Input voltage: DC 12V (support 5-19V)
Packaging size 160*100*80mm
Gross weight: 400 g
